ACTIVEE: Coding Of The Trans Parking Lock (07 01 12)

Publication date: 2012-07-01
Reference number: 07 01 12

ACTIVEE: CODING OF THE TRANS PARKING LOCK

ACTIVEE: CODING OF THE TRANS PARKING LOCK

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B07 01 12, Date of Issue:  July 01, 2012
BMW: E82E
GROUP: Coding and Programming

SUBJECT

ActiveE: Coding of the Trans Parking Lock

SITUATION

After EME, transmission or parking lock actuator replacement, the parking lock adaption has to be relearned (via the Service Functions of ISTA ActiveE).

The parking lock coding procedure (adaption learning) fails with the current version of ISTA ActiveE.

CORRECTION

To set adaption for the parking lock, follow the attached workaround procedure.

Correction for this coding problem will be available with the next release of the ISTA ActiveE.

WARRANTY INFORMATION

Not applicable.

ATTACHMENTS

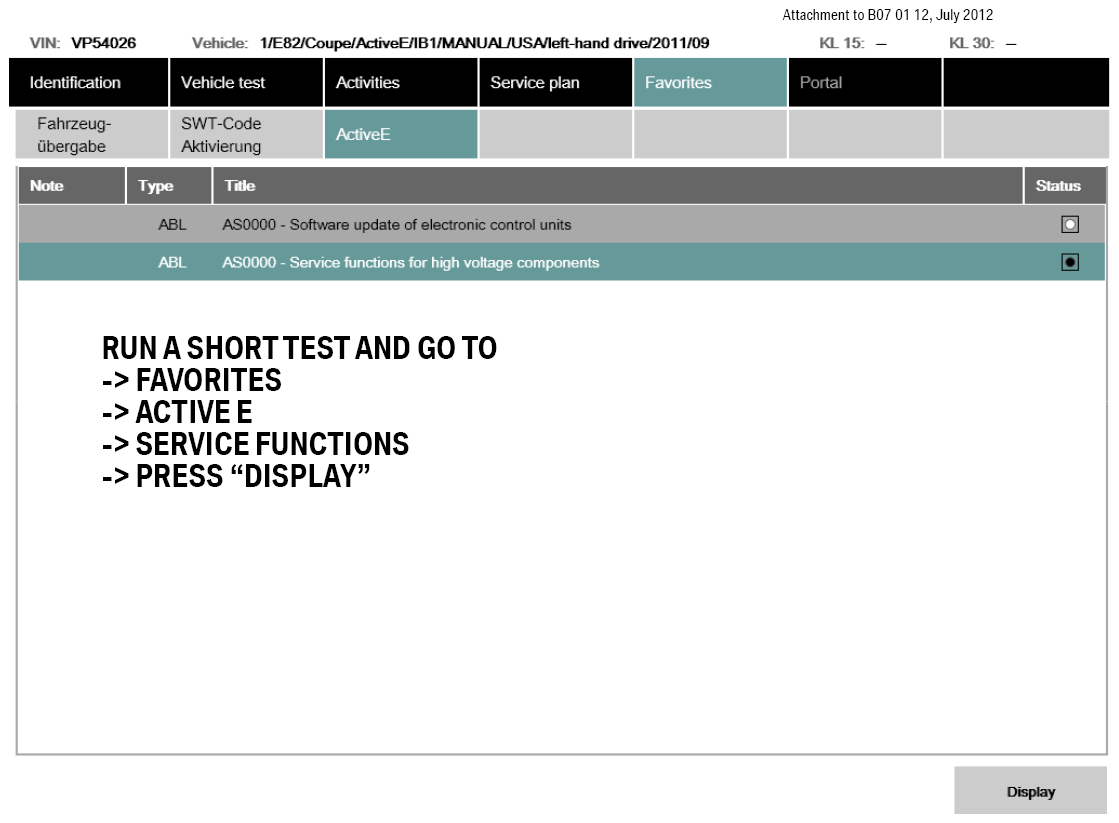

G08567871

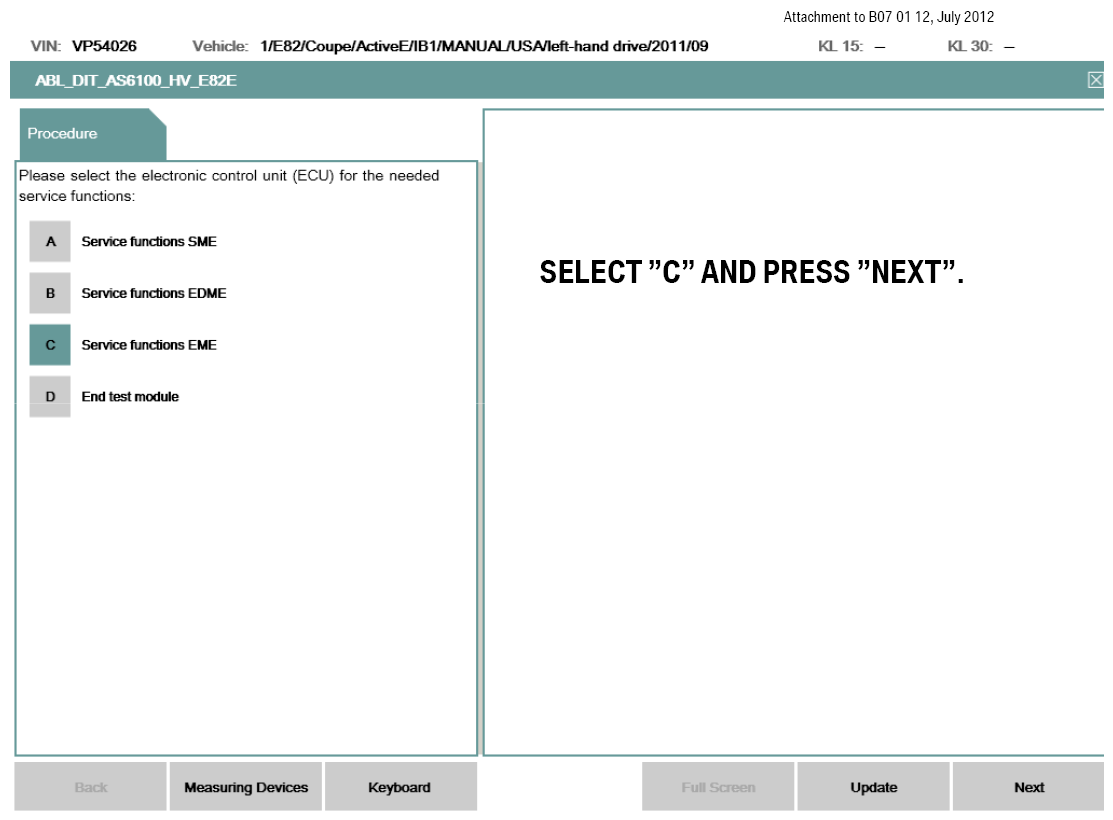

G08567872

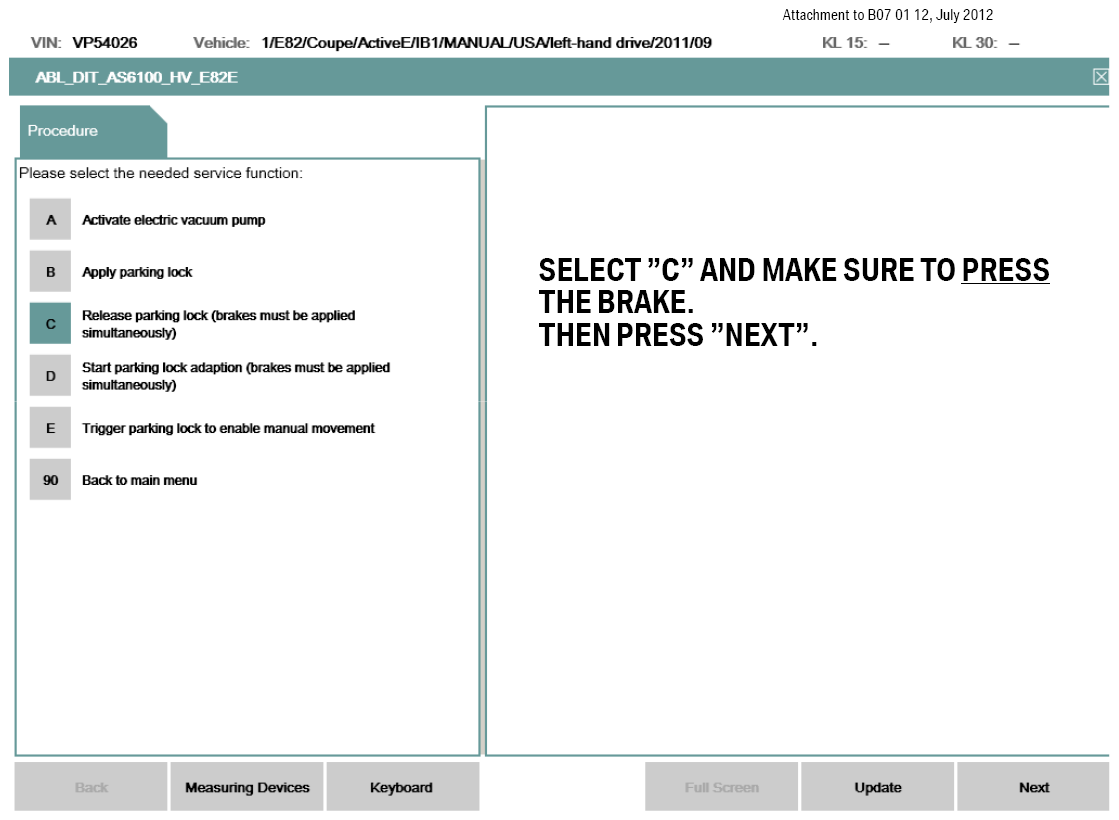

G08567873

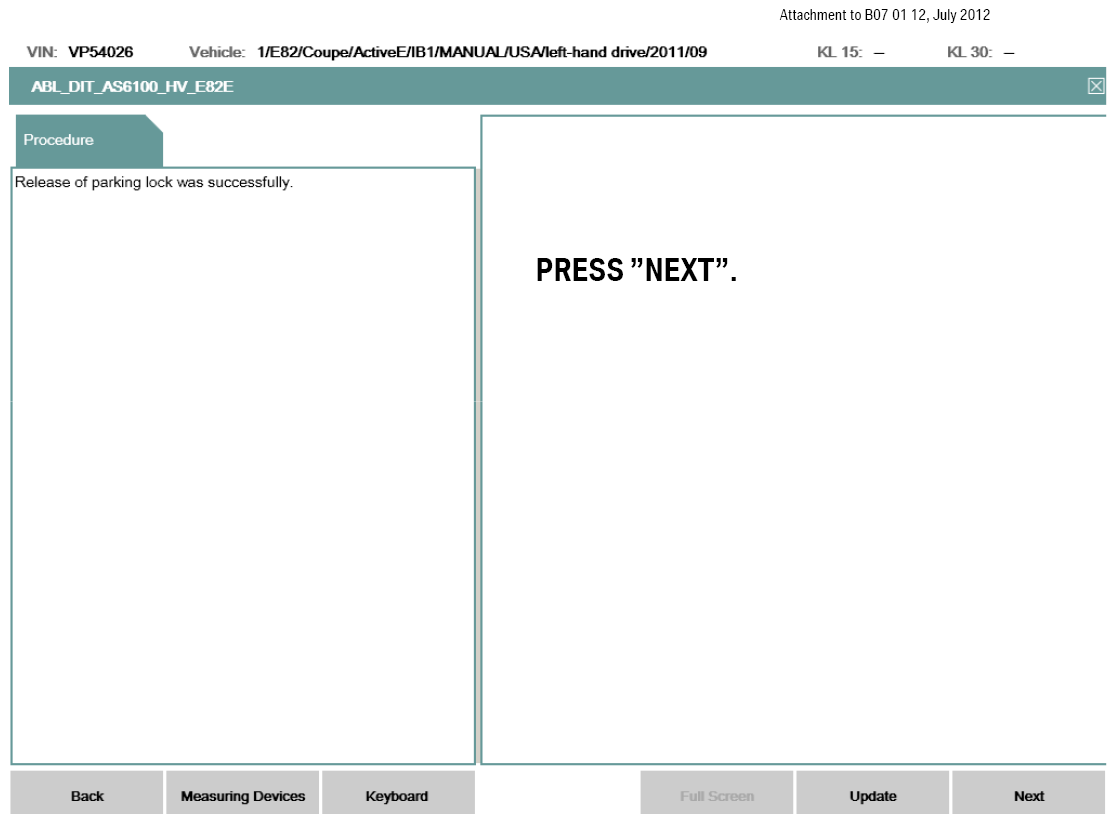

G08567874

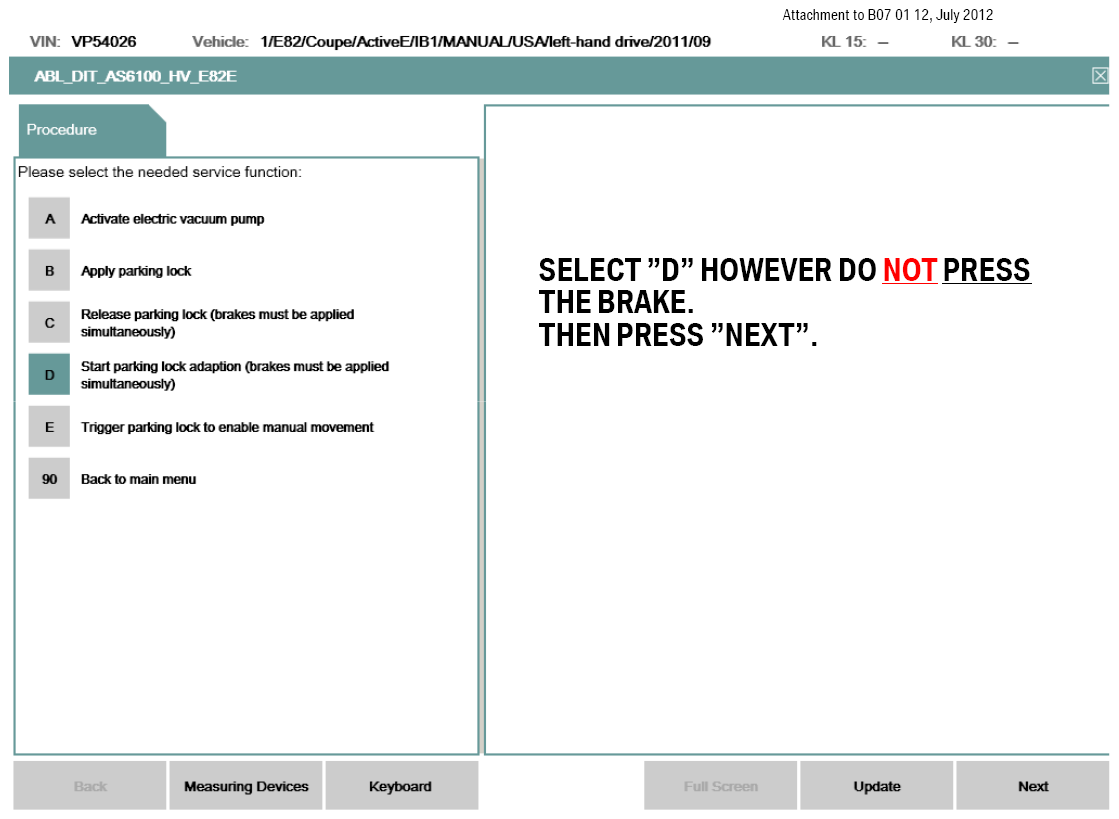

G08567875

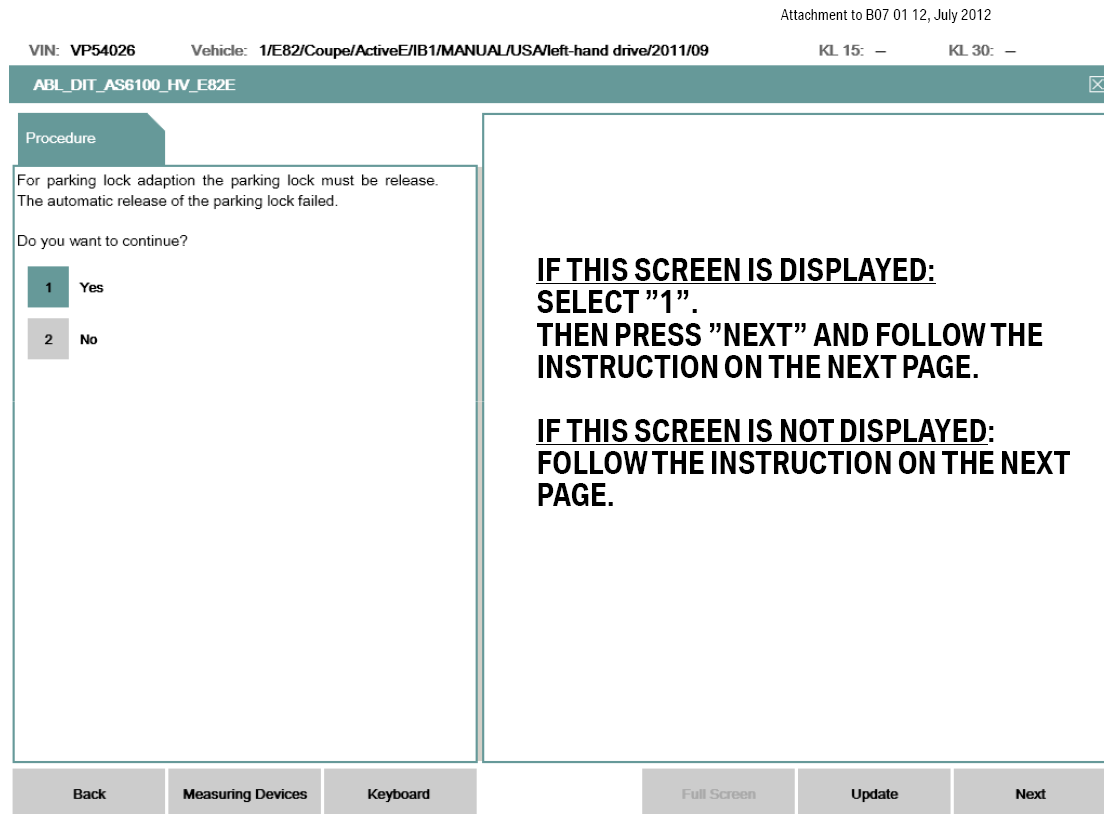

G08567876

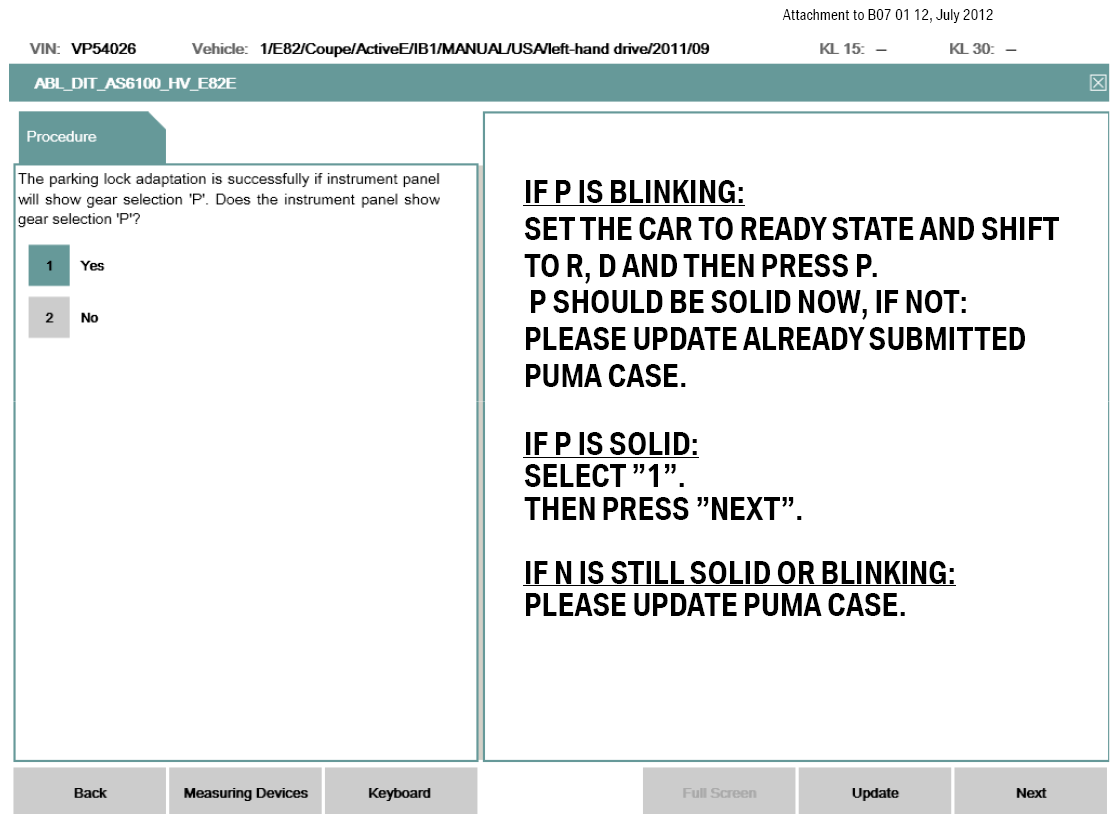

G08567877

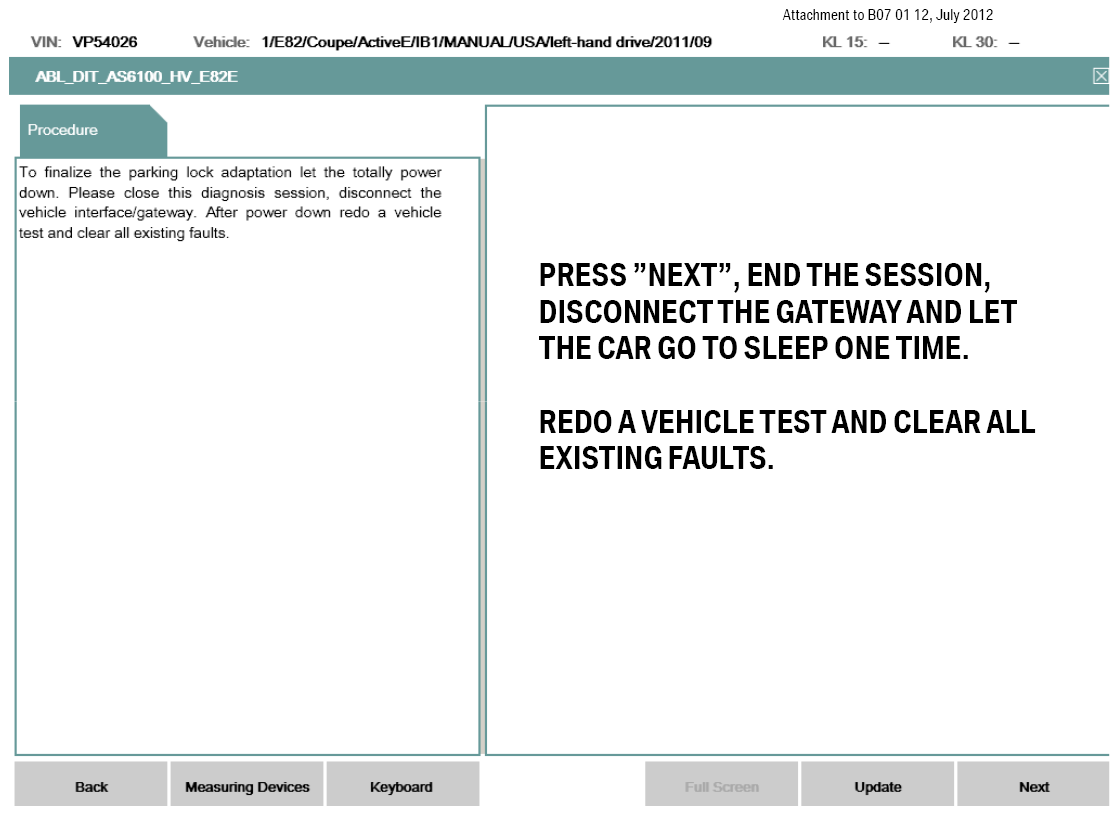

G08567878
