"Key-Dependent Settings" Menu
Under "M settings", the "Key-dependent settings" menu is also available as well as the MDrive menu.
This allows key-specific settings for certain MDrive menu items.
M engine dynamics control and EDC settings are currently possible, which are assigned to the specific key used during the configuration (configuration => ZV closing action => memorizing).
Under the M engine dynamics control menu item, "Normal" or "Sport" can be selected.
In the EDC menu item, the options "Comfort", "Normal" or "Sport" can be selected.

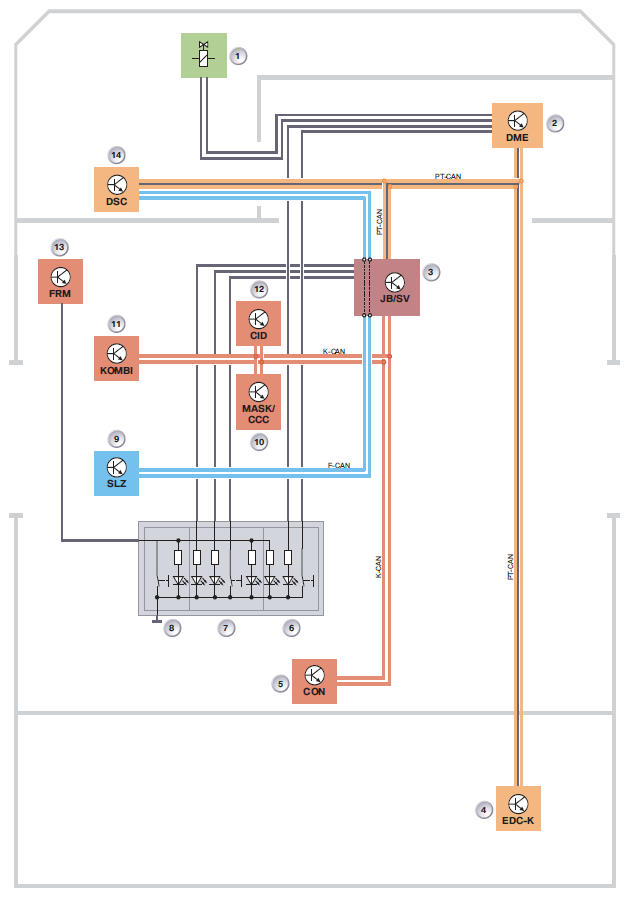

M Drive Bus Diagram
INDEX EXPLANATION REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Servotronic valve |
| 2 | DME MSS60 |
| 3 | Junction Box distribution box |
| 4 | Electronic Damping Control controller |
| 5 | iDrive controller |
| 6 | POWER button |
| 7 | EDC button |
| 8 | DSC button |
| 9 | Steering column switch cluster |
| 10 | Multi audio system controller/Car Communication Computer |
| 11 | Central Information Display |
| 12 | Instrument cluster |
| 13 | Footwell module |
| 14 | Dynamic Stability Control |
