63 99... Notes for replacing the protective cap of the headlight
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Risk of damage!
Damaged seals on the protective caps will lead to moisture penetration into the headlight.
This will in turn cause porous cable insulations and malfunctioning of the headlight.
When working on the headlight system, check the protective cap seals.
Replace the protective cap in the event of damage!

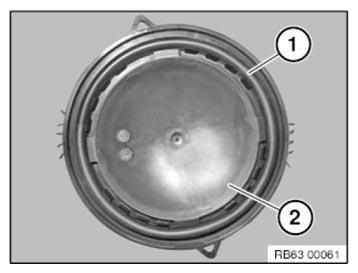

Example: screwed protective cap
Seal (1) on protective cap (2).

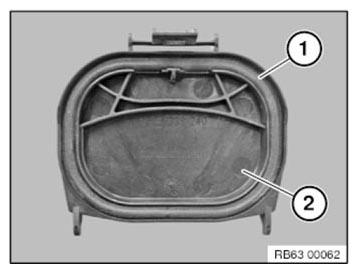

Example: latchable protective cap
Seal (1) on protective cap (2).
