22 11 110 Replacing left engine support arm (S63)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Secure engine in INSTALLATION POSITION .
Lower FRONT AXLE SUPPORT (left-hand drive models only)

Release screw (1).

Tightening torque 22 11 2AZ .

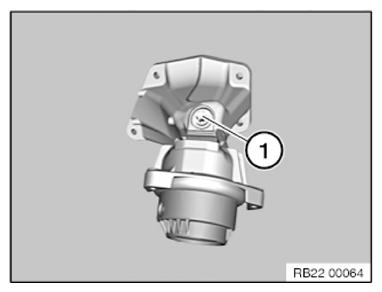

Fig 1: Identifying Left Engine Support Arm (S63) Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 22 11 3AZ .

Remove engine support arm.

Installation note:

Attention!

To ensure play between engine mount and engine support arm, lower the engine completely before tightening the screw connection (engine mount/engine support arm).

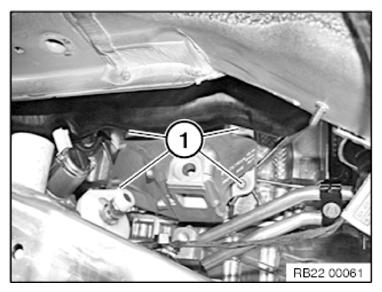

Fig 2: Identifying Engine Support Arm Screws

Courtesy of BMW OF NORTH AMERICA, INC.
