22 11 110 Replacing left engine support arm (N20)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Secure engine in INSTALLATION POSITION .
- REMOVE LEFT CHARGE AIR DUCT .
- Remove rear UNDERBODY PROTECTION .

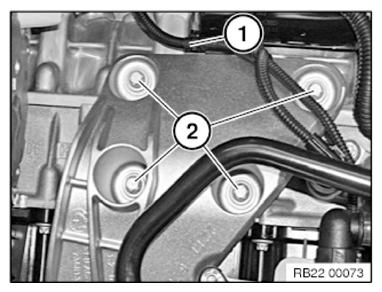

Release clamp (1) with cable from engine support arm.
Unfasten screws (2).
Remove engine support arm.
Tightening torque 22 11 3AZ .
