61 35 970 Removing And Installing/Replacing Luggage Compartment Antenna For Comfort Access System
Necessary preliminary tasks:
- Remove luggage compartment floor trim panel, refer to 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL .
- Remove control unit cover

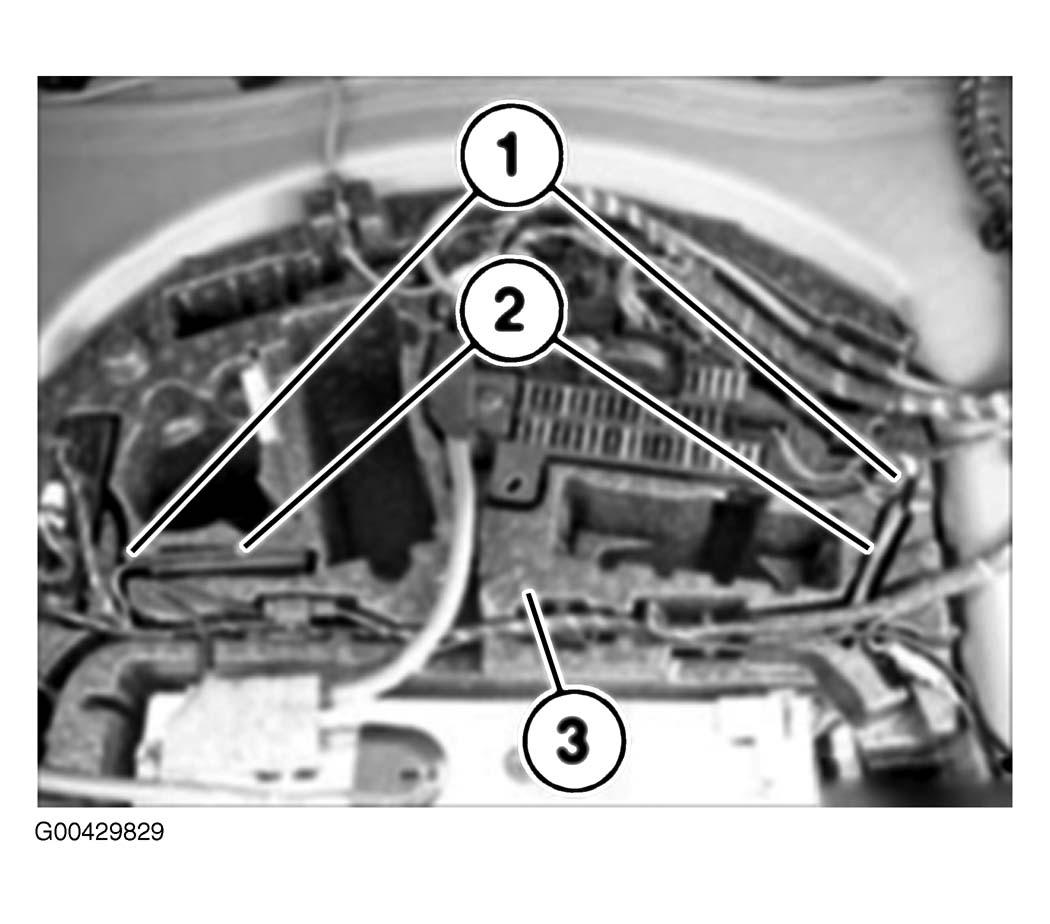

Disconnect plug connection (1).
Pull luggage compartment antenna (2) for comfort access system from control unit receptacle (3).
