Steering Angle Sensor Adjustment (32 06 06)

Publication date: 2006-03-20
Reference number: 32 06 06

STEERING ANGLE SENSOR ADJUSTMENT

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B 32 06 06, Date of Issue: March 20, 2006

BMW:	E60, E61 (5 Series Sedan and Sports Wagon); E63, E64 (6 Series Coupe and Convertible)
GROUP:	Steering and Wheel Alignment

Steering Angle Sensor Adjustment

Steering Angle Sensor cannot be calibrated. Fault Code 9501 is stored in the control module.

Steering angle sensor is not properly installed.

Install the steering angle sensor by aligning the two arrows.

Install the steering angle sensor per Repair Instructions RA 32 31 082.

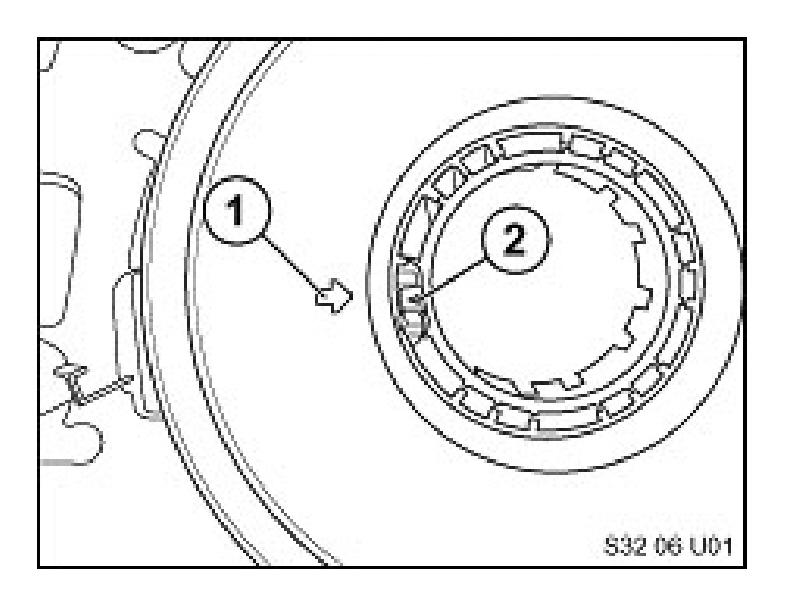

Locate the large arrow (1) and align it with the small arrow (2).
Perform the steering angle sensor adjustment per Repair Instructions RA 61 31 996.

Fig 1: Steering Angle Sensor Alignment

Information only.
