61 31 492 Replacing level switch for windscreen washer system
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove WASHER FLUID RESERVOIR

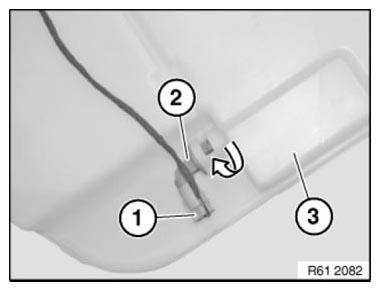

Unfasten plug connection (1) and disconnect.
Turn washer fluid level switch (2) in direction of arrow and pull downwards out of washer fluid reservoir (3).
