13 62 560 Removing and installing/replacing airmass flow sensor (N62)

Necessary Preliminary Tasks:

Open clips (1).

Unlock plug (2) and remove.

Unfasten clip.

Remove top section (3) of intake filter housing.

Installation:

Check sealing ring between air-mass flow sensor and air intake hose for damage, replacing if necessary.

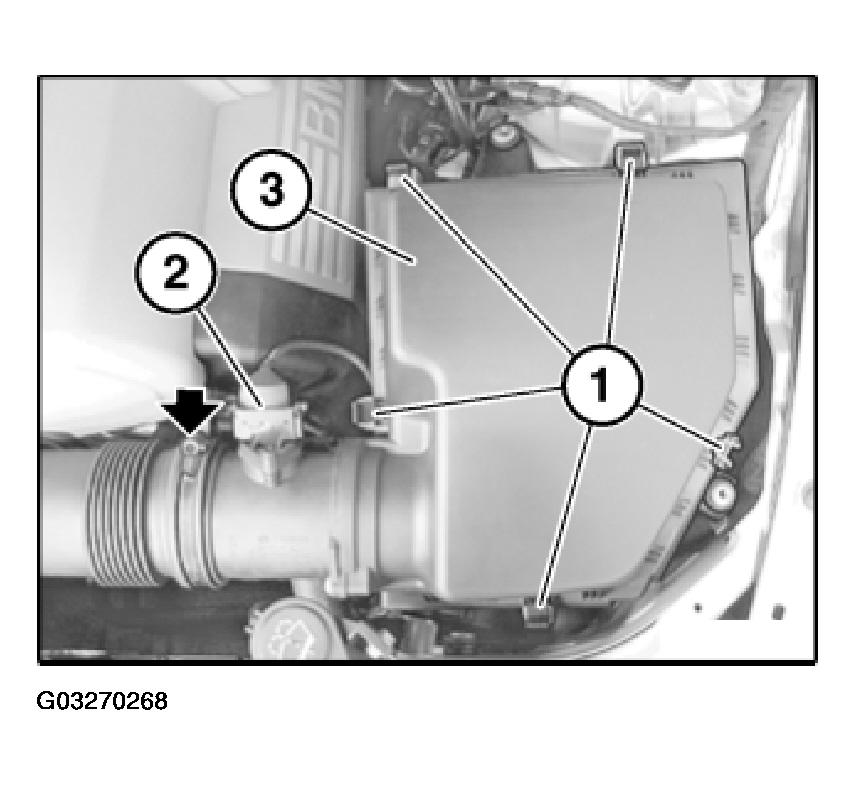

Fig 1: Locating Top Section Of Intake Filter Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Pull air-mass flow sensor (1) out of upper section of intake filter housing.

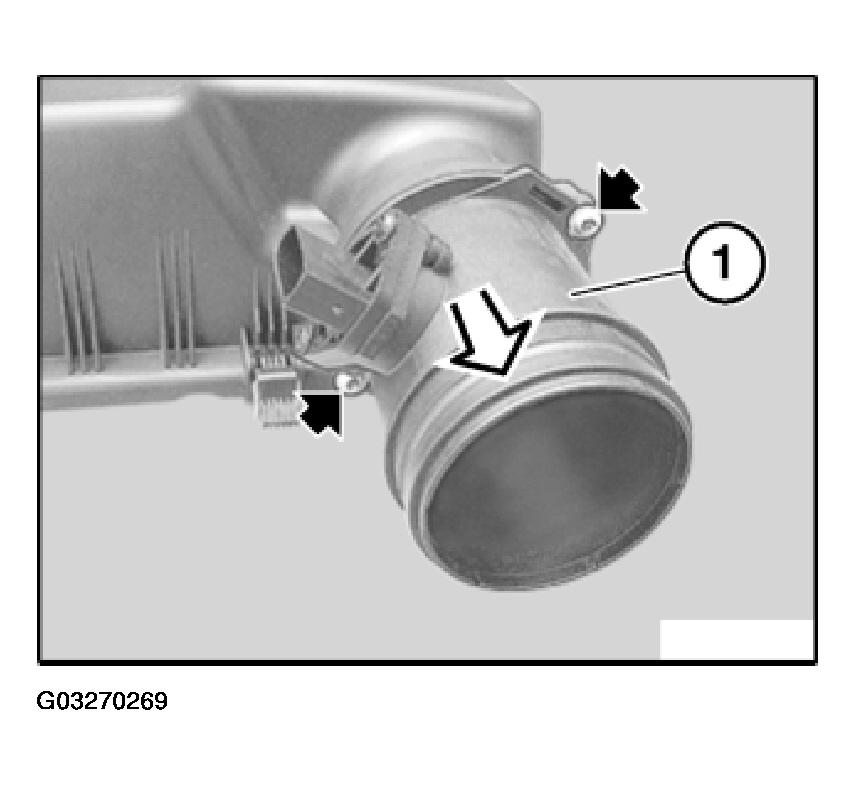

Fig 2: Identifying Air-Mass Flow Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault messages. Now clear the fault memory.
