61 31 133 Removing and installing/replacing AV connection socket

Necessary Preliminary Tasks:

• Remove rear insert (in storage compartment). Refer to 51 16 ... REMOVING AND INSTALLING/REPLACING REAR INSERT (IN STORAGE COMPARTMENT) .

Press locks (1) together, feed AV connection socket (2) out of rear insert (3) and remove.

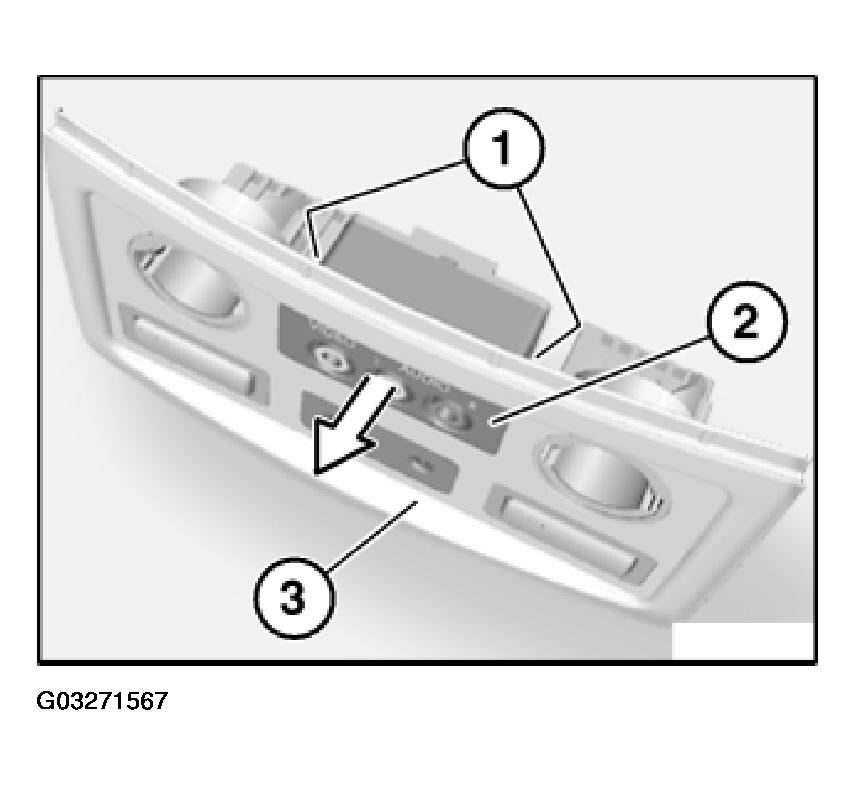

Fig 1: Locating AV Connection Socket

Courtesy of BMW OF NORTH AMERICA, INC.
