Models With A Transmission Dipstick

To check and add fluid on transmissions with dipstick, see Fig 1.

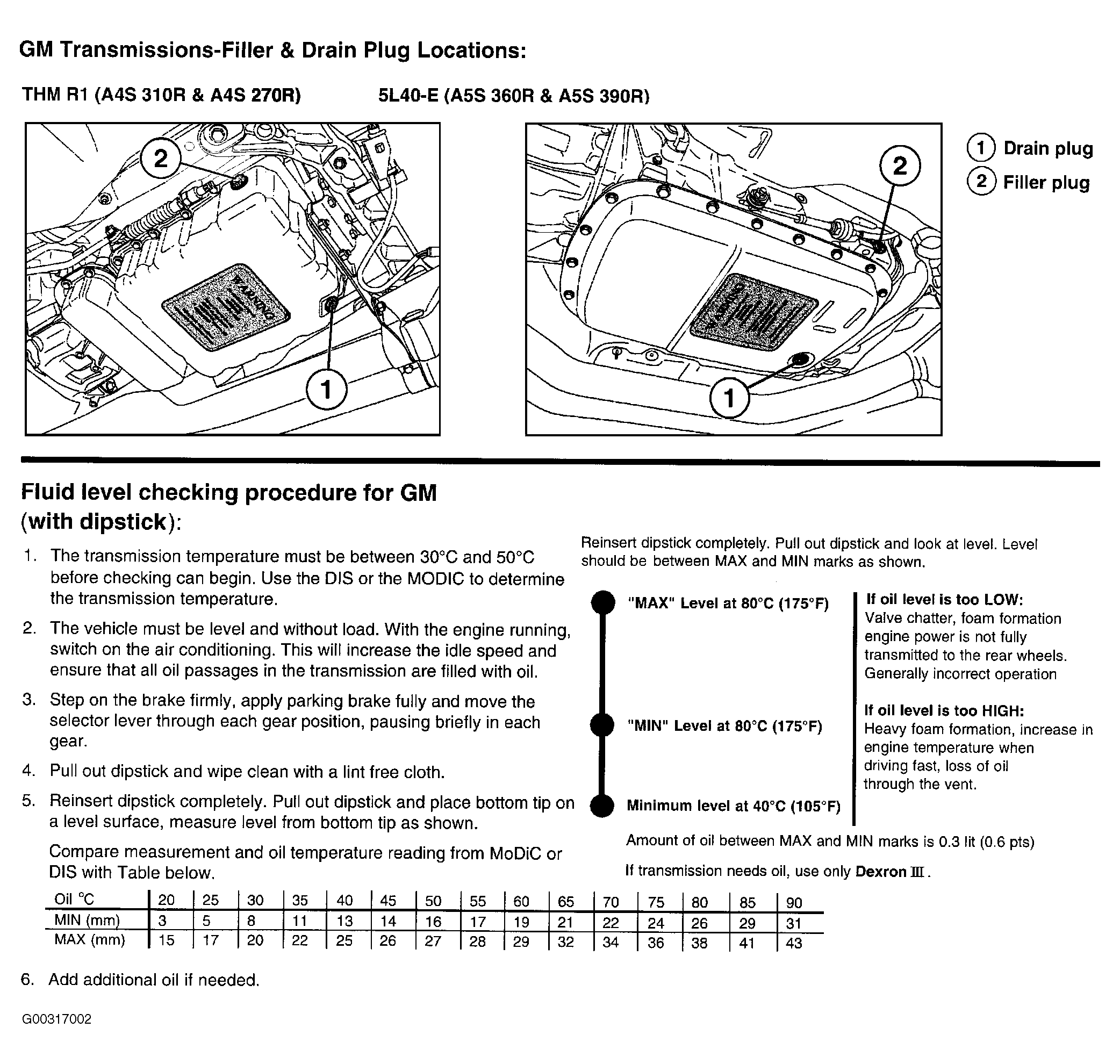

Fig 1: Checking & Adding Fluid On Transmissions With Dipstick
G00317002Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: For the latest oil specifications, refer to A4S 200R (GM4) & A5S 360R/390R (GM5) .
