Identification Page

The ID page is helpful to determine the Transmission and control system used as well as the chassis number and current software version. Always print out a copy of the ID page when performing any diagnosis or programming procedures.

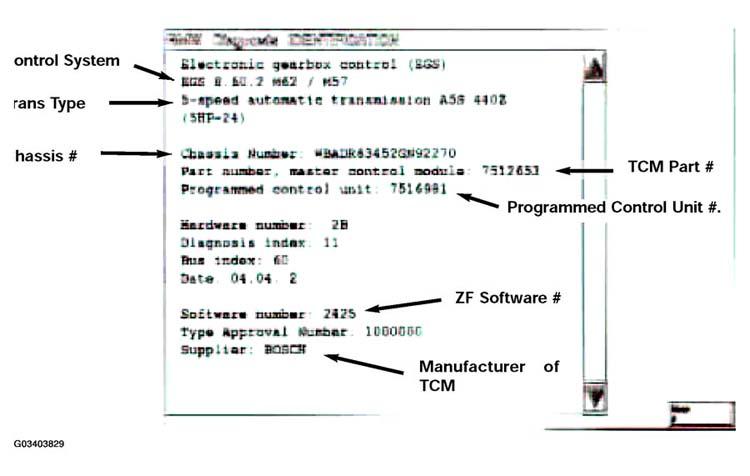

Fig 1: Identifying Identification Page
G03403829Courtesy of BMW OF NORTH AMERICA, INC.
