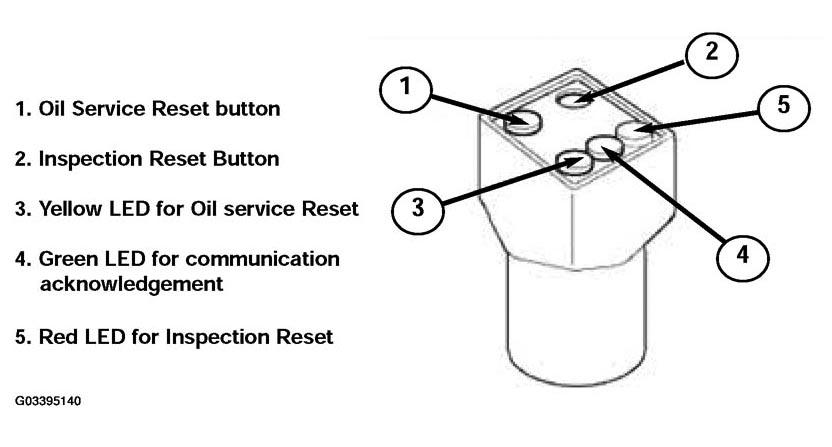

Reset Procedure Using Special Tool
- Oil Service Reset button
- Inspection Reset Button
- Yellow LED for Oil service Reset
- Green LED for communication acknowledgment
- Red LED for Inspection Reset
Courtesy of BMW OF NORTH AMERICA, INC.
- Insert special tool 62 1 110 into the diagnostic connector. If the vehicle uses a 15 pin diagnosis connector use adapter 61 2 060.
- Turn the ignition to position 2
- Push and hold the button to reset the applicable service: Oil Service or Inspection. Button 1 or 2 respectively.
- The reset tool has three LEDs below the reset buttons. The green LED (4) in the center comes on whenever any service reset is selected to indicate that communication is OK. The other two LEDs (3 and 5) indicate that the proper reset (Oil Service: yellow or Inspection: red) is being carried out.
