Serial Interface Cable

25 feet cable for a hard wire connection between the diagnostic head and the MoDiC.

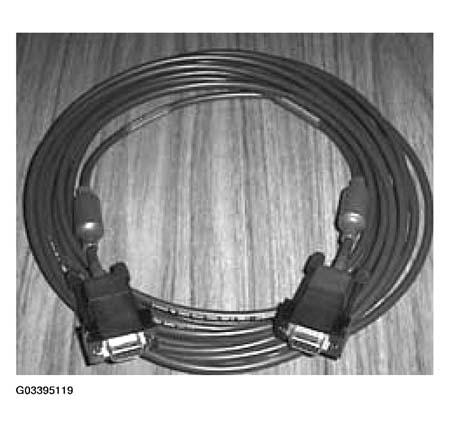

Fig 1: Identifying Serial Interface Cable

G03395119

Courtesy of BMW OF NORTH AMERICA, INC.
