Multi-Function Cable (MFK)

MFK 1 and MFK 2 measurement cables used with the MoDiC's measurement system. Both cables are 2 meters long.

Measuring parameters for the cables are similar to the DIS tester's MFK 1 and MFK 2 MFK 1

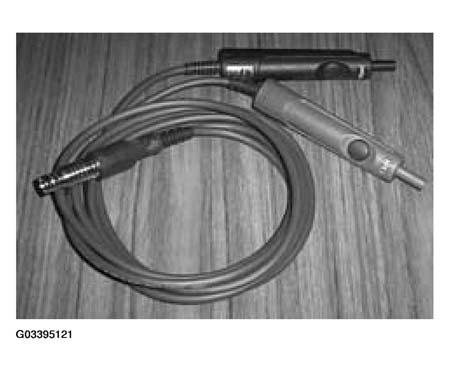

Fig 1: Identifying Multi-Function Cable (MFK)
G03395121Courtesy of BMW OF NORTH AMERICA, INC.
