Leak Diagnosis Test - X5

NOTE: For leak detection, see Fig 1 and Fig 2 .

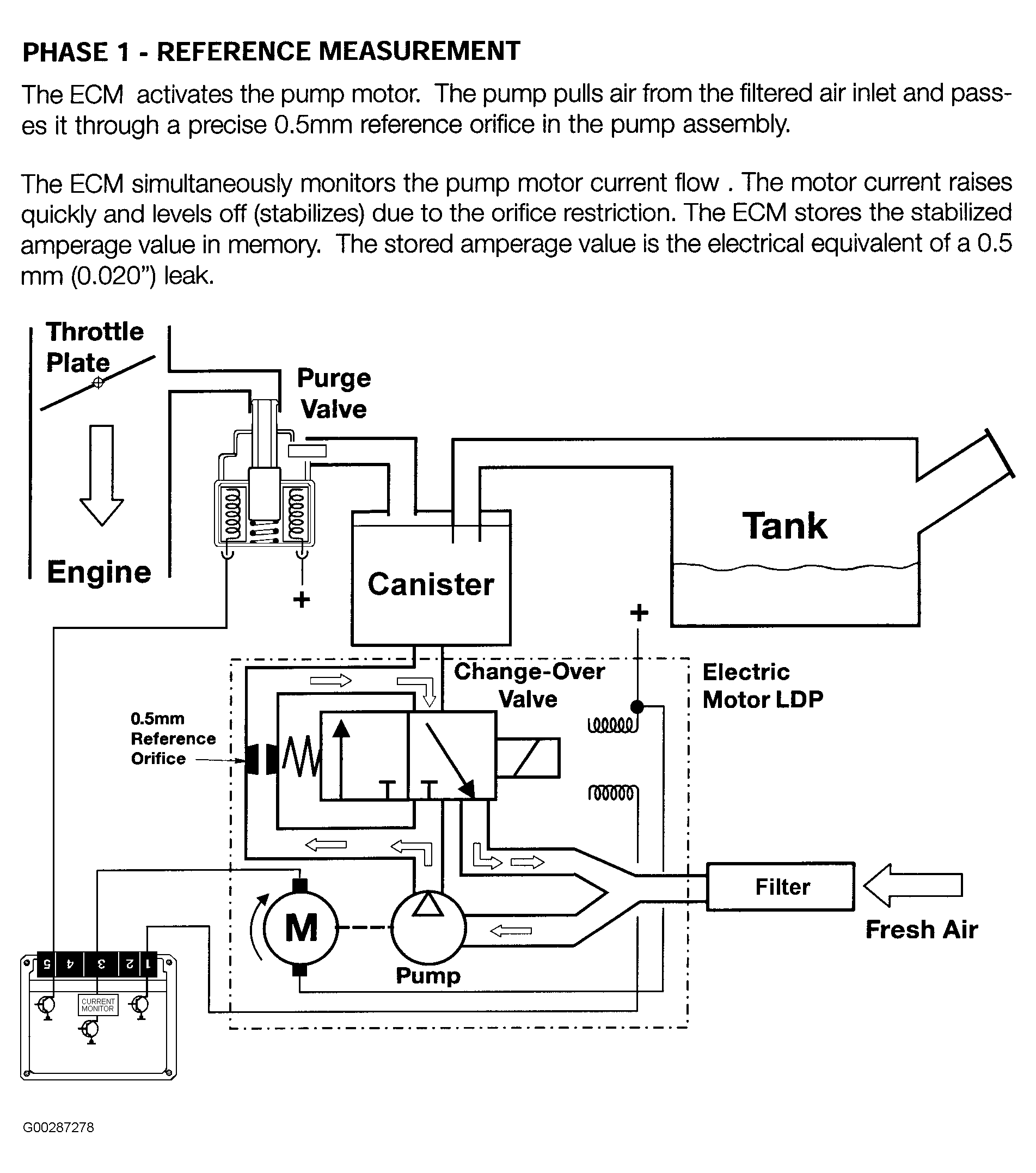

Fig 1: Phase 1 - Reference Measurement (X5)
G00287278Courtesy of BMW OF NORTH AMERICA, INC.

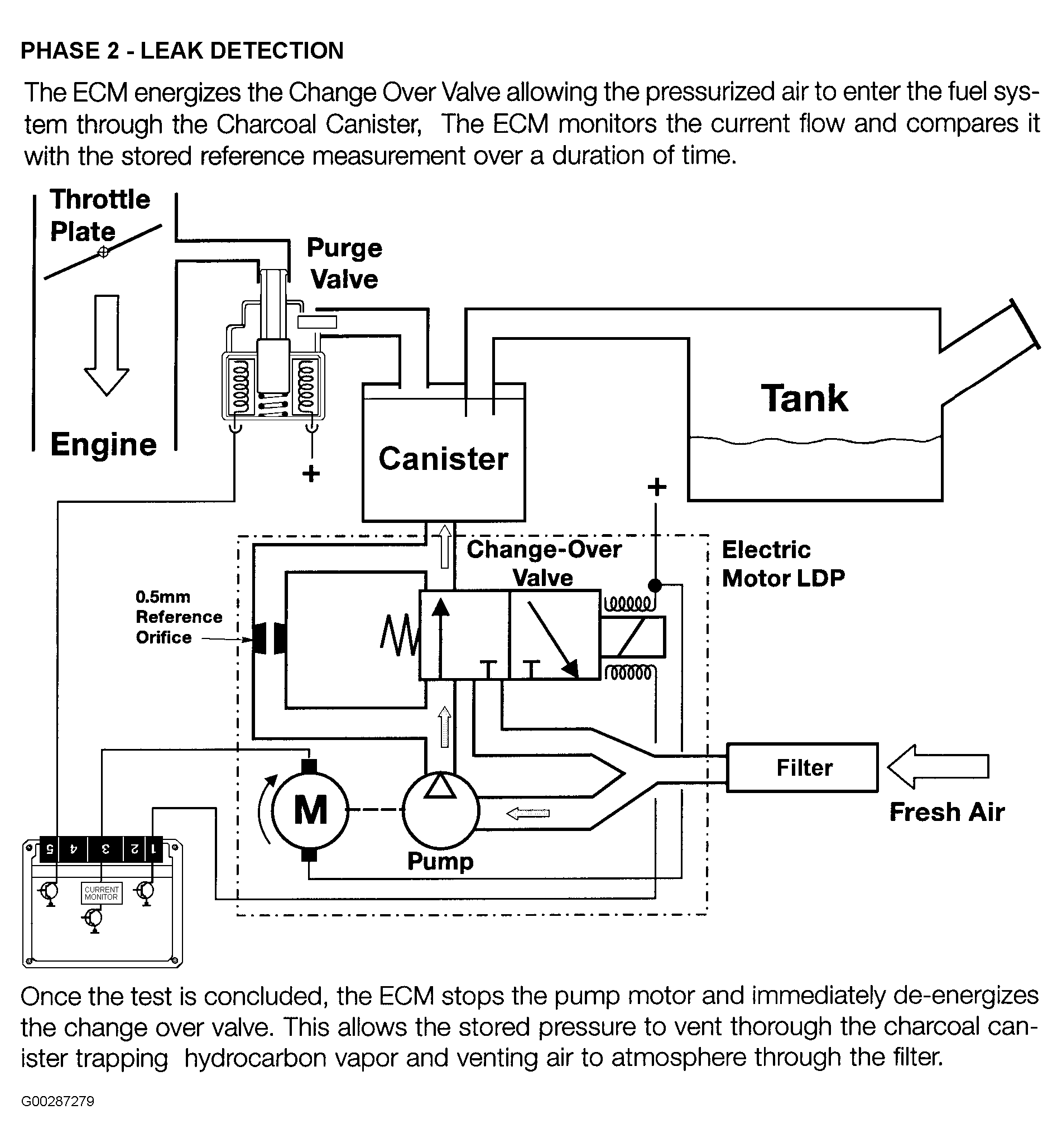

Fig 2: Phase 2 - Leak Detection
G00287279Courtesy of BMW OF NORTH AMERICA, INC.
