3.3 Fuel System Operating Data

Pressure regulator: 5.0 bar.

Operating pressure of suction jet pump: 1 - 1.3 bar

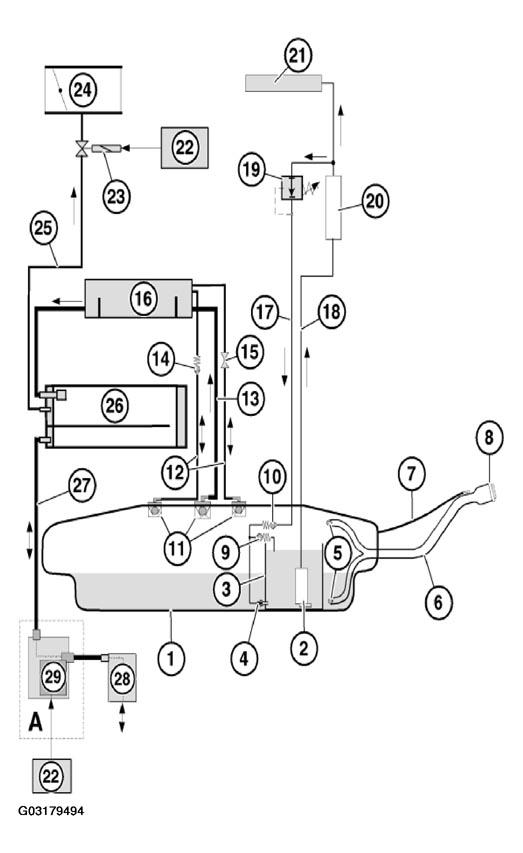

Fig 1: 3.4 Fuel Supply System E52

G03179494

Courtesy of BMW OF NORTH AMERICA, INC.
