2.3 Fuel System Operating Data

Pressure regulator: 3.5 bar

Operating pressure of suction jet pumps: 1 - 1.3 bar

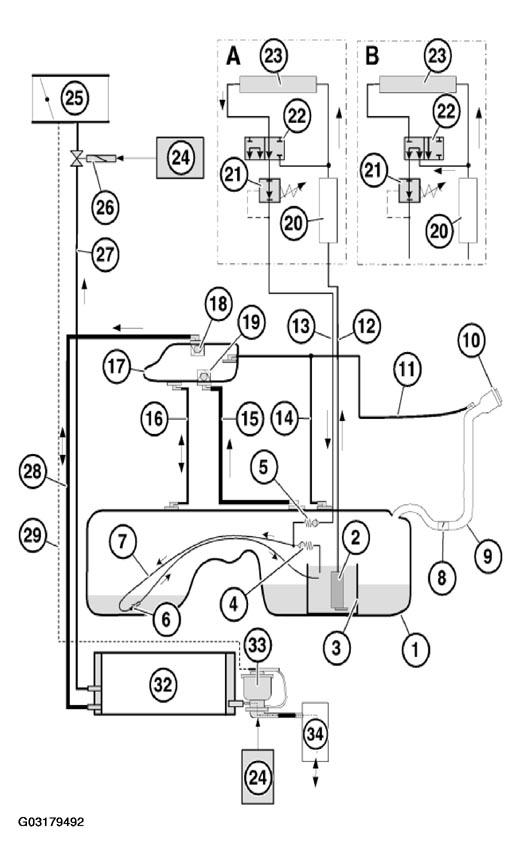

Fig 1: 2.4 Fuel Supply System E46 M43TU/M52TU/M54

Courtesy of BMW OF NORTH AMERICA, INC.

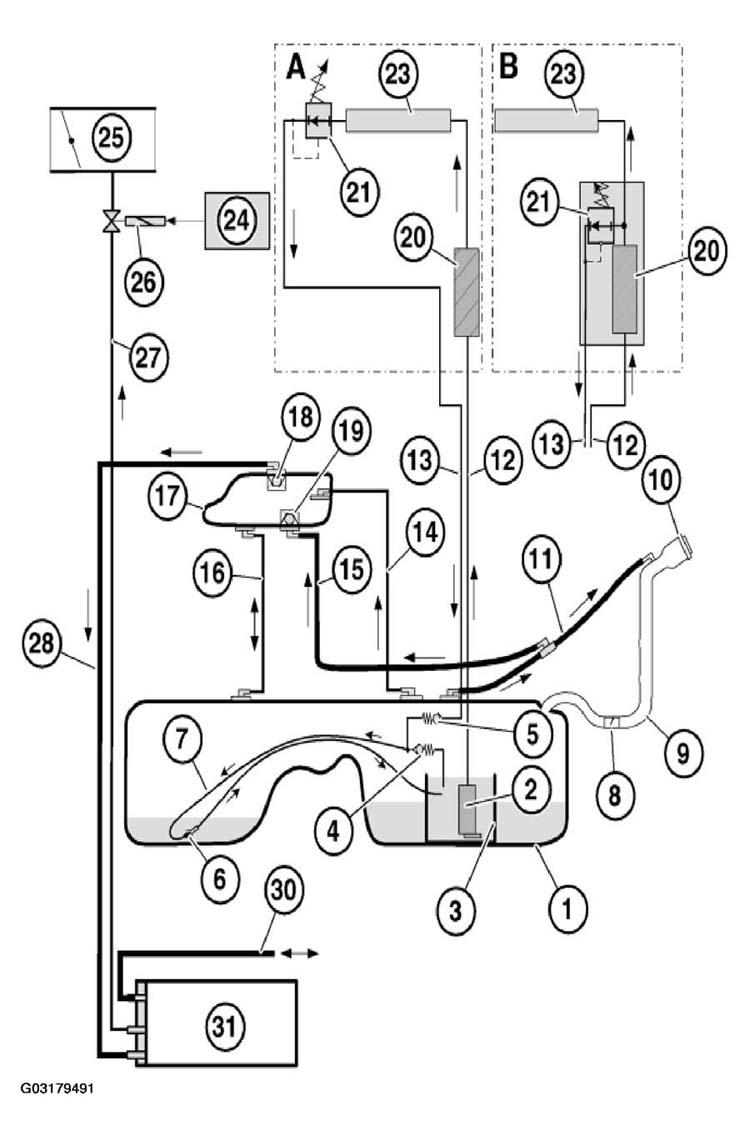

Fig 2: 2.5 Fuel Supply System E46 M43TU/M52TU/M54 Japan

Courtesy of BMW OF NORTH AMERICA, INC.

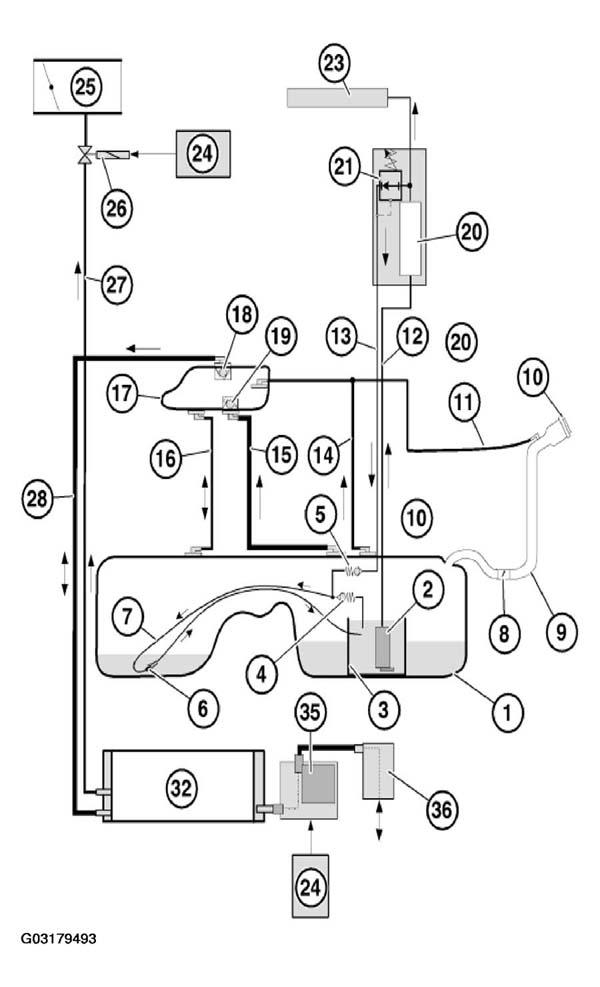

Fig 3: 2.6 Fuel Supply System E46 M52 USA

Courtesy of BMW OF NORTH AMERICA, INC.

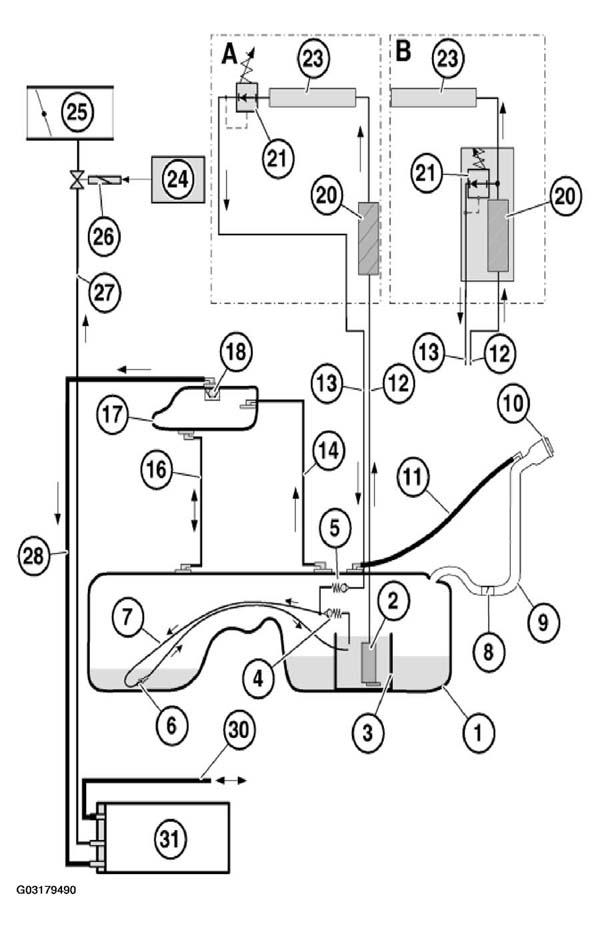

Fig 4: 2.7 Fuel Supply System E46, M54 USA

Courtesy of BMW OF NORTH AMERICA, INC.
