CAN Interface

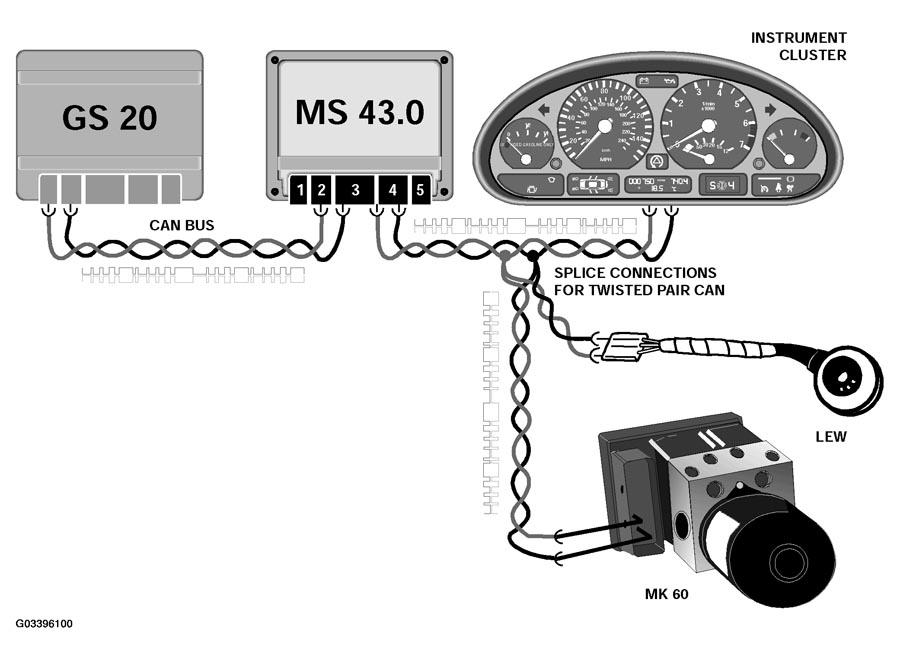

The MK60 is connected to the CAN bus for communication with the AGS, DME control module, Steering Angle Sensor and the Instrument Cluster.
The CAN bus allows all of the connected control modules to send and receive information and commands.
Communication with the MK60 includes:
- DME - The DME sends current engine torque. MK60 commands the DME to reduce (ASC/DSC) or raise (MSR) engine torque.
- AGS - The MK60 commands the AGS to suppress shifts during regulation.
- LEW - The MK60 receives steering angle information.
- KOMBI - The MK60 commands the instrument cluster to activate or deactivate the warning lamps.
- All four wheels speed signals are sent over the CAN bus for use by other modules.
