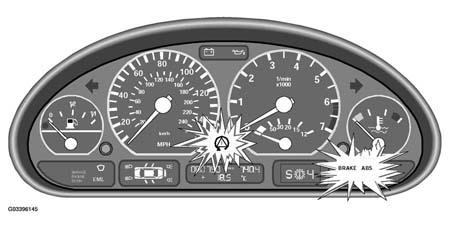

Instrument Cluster Warning Indicators
Three warning indicator lamps are arranged in the instrument cluster:
- DSC lamp: Indicates fault in DSC or system disabled by the switch.
- ABS lamp: Indicates a fault in the ABS system.
- ABL "BRAKE" lamp: This lamp is a general brake warning and illuminates two different colors.
- Red indicates low brake fluid or hand brake engaged.
- Yellow indicates DSC/ABS fault.
The DSC and yellow ABL lamps are controlled by the DSC control unit via the CAN bus.
The ABS lamp is controlled directly by the DSC III 5.7 control unit via hard wire.
