51 21 146 Replacing Locks For Simultaneous Closing With EWS Control Module

Replace locks for simultaneous closing, refer to REPLACING LOCKS FOR SIMULTANEOUS CLOSING .

Remove panel for pedals, refer to REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

• Disconnect battery negative lead.
• Disconnect plug connection on control module for electronic immobilizer and remove control module.
• Install new control module.
• Connect battery negative lead.

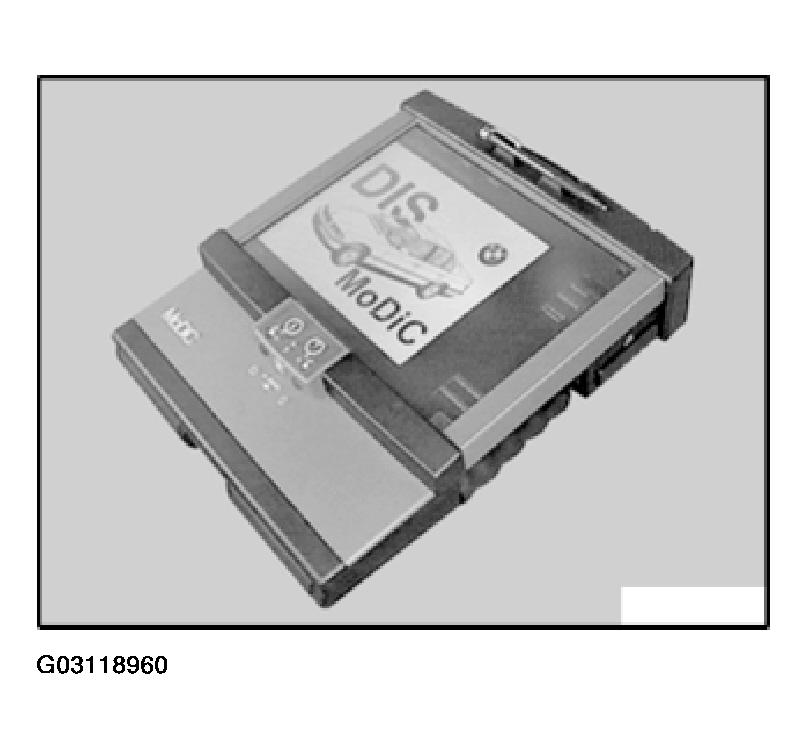

  Fig 1: Identifying MoDiC III

  Courtesy of BMW OF NORTH AMERICA, INC.
• Connect DIS Tester or MoDiC III.
• Select model.
• Select coding program.
• Read out data.
• Code EWS control module.
• Terminate coding program.
• Carry out function check.
