51 31... Removing windows with a "Spider"

Windscreen removal system "Spider"

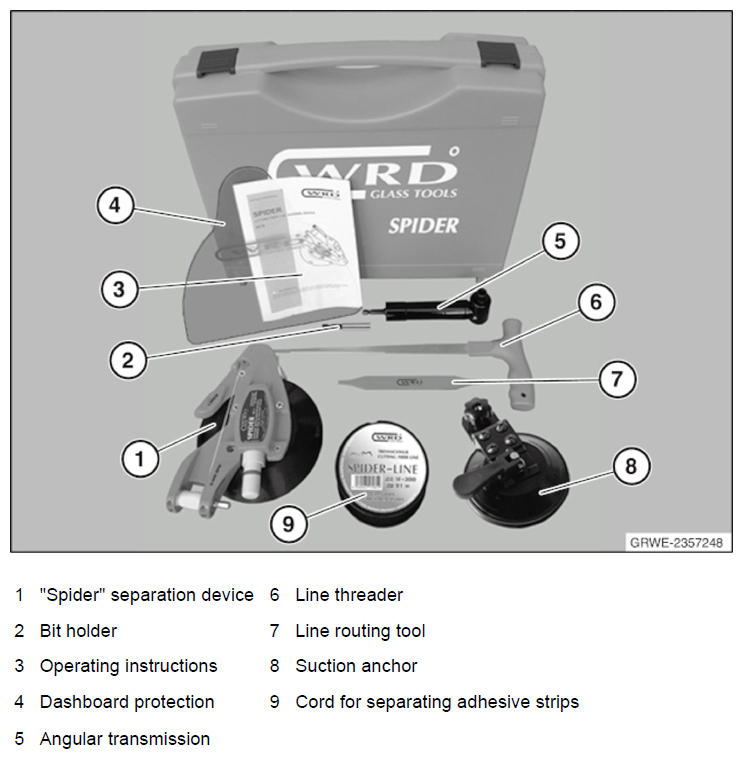

Fig 1: Identifying Windscreen Removal Tool Components

Courtesy of BMW OF NORTH AMERICA, INC.

Accessories required for operation (not included):

Cordless screwdriver/drill with at least a 10.8 V Li-ion battery or a 18 V Ni-Cd battery and variable speed.

Sourcing reference:

The procedure for disassembly of the windscreen is described below as an example.

Deviations in the work procedure can be found in the vehicle-specific repair instructions.

General

A cord approx. 6.8 m long is used to cut through the adhesive bead.

The cord length to be used is identified by a short red mark (A) approx. 5 cm.

The part of the cord laid outside around the window glass (approx. 5 m) is identified with a long red mark (B) (approx. 18 cm).

The marks are applied so that the cord has to be pulled from the inside to the outside.

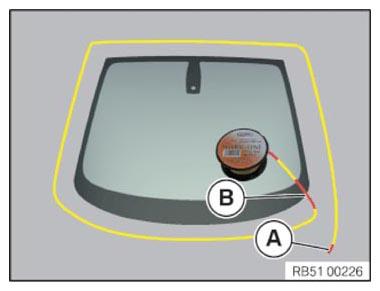

Fig 2: Identifying Window Glass Cord Red Mark

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation

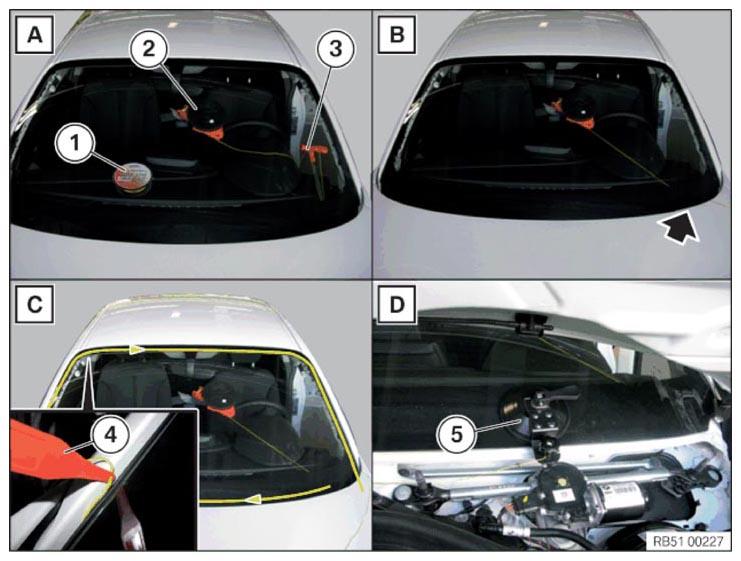

Fig 3: Installing Cord Around Window Glass Using Pulling Aid

Courtesy of BMW OF NORTH AMERICA, INC.

1. Pierce cord from the roller (1) or separation device (2) with cord threader (3) through the adhesive bead from the inside, protect the area from the inside as required.
2. Pull out cord up to the first red mark (approx. 18 cm long).
3. Lay cord around the window glass, use pulling aid (4) if required.
4. Secure suction anchor (5) outside on window glass, secure cord to suction anchor (5).

If required, unwind cord from roller (1) up to the second red mark (approx. 5 cm long) and cut off.

Make sure the cord lies below the window glass at all four corners.

Check that the cord is not caught on clamps or body.

Secure window glass on outside with adhesive tape against sliding.

Feeding in the cord on the separation device

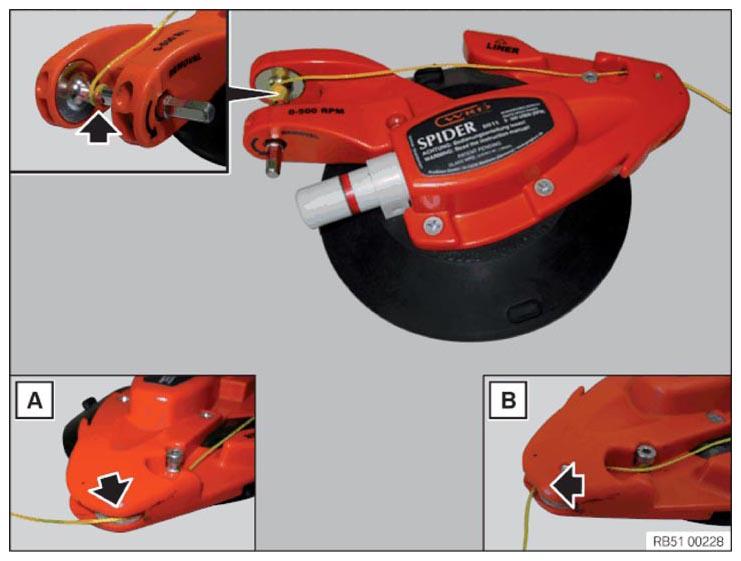

Fig 4: Identifying Cord Separation Device

Courtesy of BMW OF NORTH AMERICA, INC.

Normally, the adhesive bead is cut through anticlockwise seen from the passenger compartment.

• This means the cord must be fed into the separation device as shown in graphic A.

When accessibility is not optimal, the opposite cutting direction may be required (comply with vehicle-specific repair instructions).

• This means the cord must be fed into the separation device as shown in graphic B.

Feed cord into coil and wind it on, at the same time trapping the end of the cord.

When winding the cord, the correct direction of rotation on the separation device must be observed.

Cutting out procedure

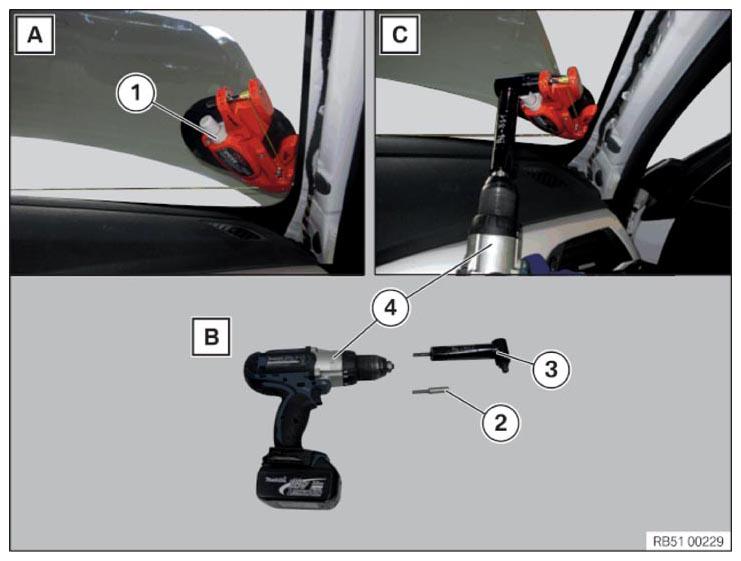

Fig 5: Identifying Separation Device, Bit Holder And Angle Gear

Courtesy of BMW OF NORTH AMERICA, INC.

Optimum cutting is guaranteed when the cord is at an acute angle to the adhesive bead. There is a risk of the cord ripping if the angle is too obtuse.

The separation device must be positioned correspondingly to achieve the appropriate angle.

1. Fix separation device (1) on window glass at bottom right.
2. Depending on accessibility, attach bit holder (2) or angle gear (3) to cordless screwdriver (4).
3. Place cordless screwdriver (4) on separation device (1) and start winding cord, observe direction of rotation on separation device.

If required, over trim panel components with plastic protection.

Guide cord with plastic protection around sharp-edged positions.

Cut through adhesive bead up to bottom area of A-pillar.

Turn back cordless screwdriver (4) approx. 2 rotations and remove.

Cutting out procedure

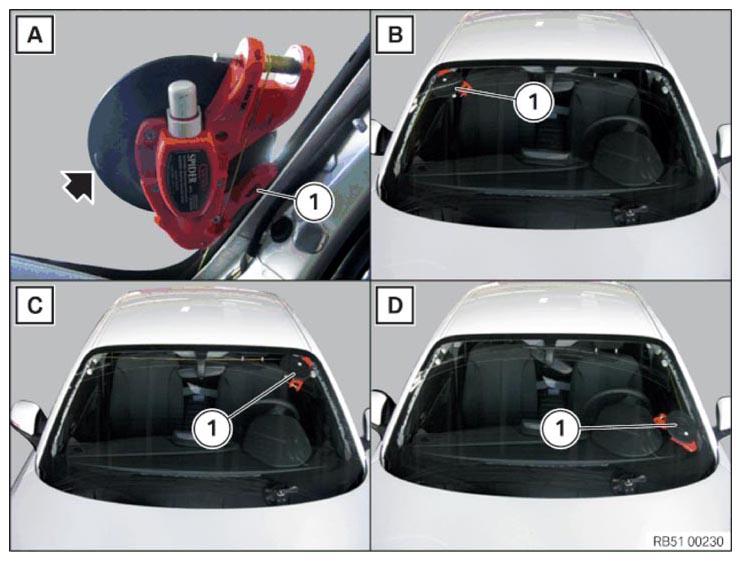

Fig 6: Positioning Windscreen Removal Tool

Courtesy of BMW OF NORTH AMERICA, INC.

1. A. Discharge vacuum on windscreen removal tool (1) by pressing the tab, remove windscreen removal tool (1) from window glass.
2. B. Reset removal tool (1) at illustrated and wind up cord up to the position of windscreen removal tool (1).
3. C./D. Repeat further resetting, work sequence as given at B.

Additional resetting may be required for very curved window glass.

It is possible to reuse the cord. When a cord is used many times the risk of ripping increases.

Dirt contamination must be avoided when a cord is reused.
