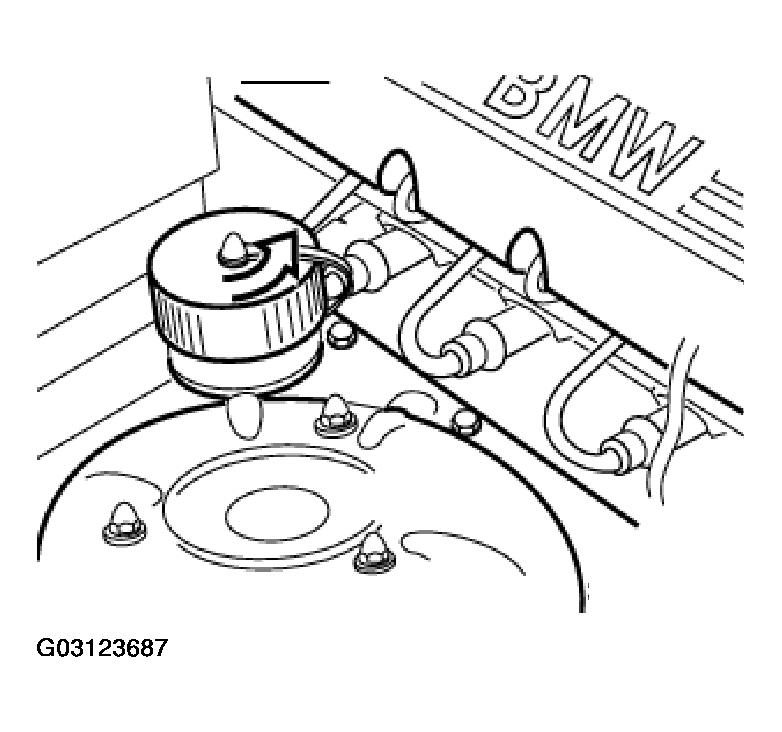

Diagnostic connector in engine compartment:

Connect up MoDiC or BMW DIS.

Interrogate DME fault memory.

Note down fault messages stored in memory.

Further information on troubleshooting in line with DIS or MoDiC instructions.

Fig 1: Identifying Digital Engine Electronics

Courtesy of BMW OF NORTH AMERICA, INC.

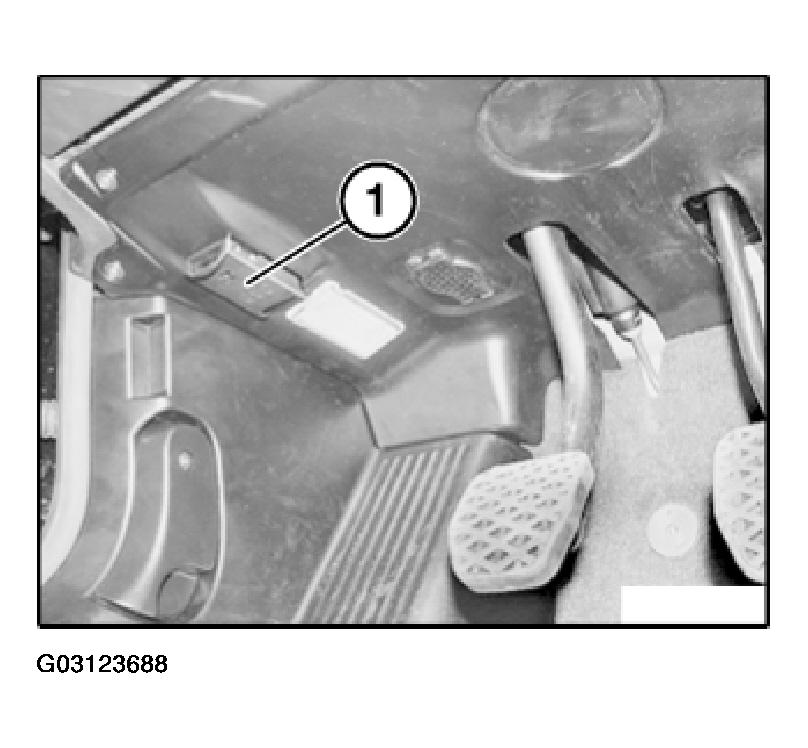

OBD socket (1) in driver's footwell:

Same procedure as above.

Fig 2: Identifying OBD Socket In Driver'S Footwell

Courtesy of BMW OF NORTH AMERICA, INC.
