DM-TL (Diagnosis Module - Tank Leakage): Notes

The M54 engine with the Siemens MS43.0 engine control system uses the DMTL system for fuel system leakage monitoring. The pump is manufactured by Bosch for use with the Siemen's control system.

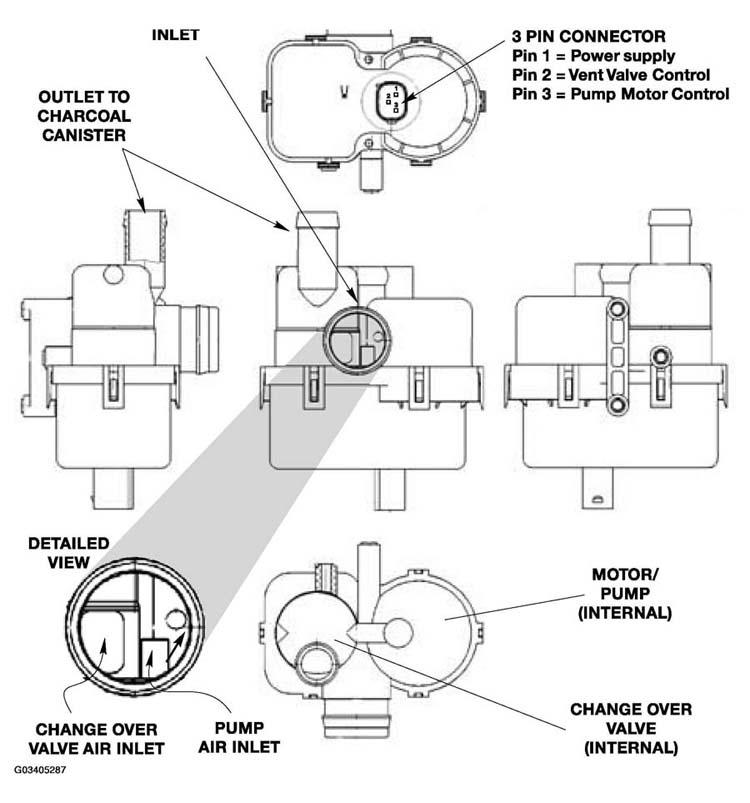

Fig 1: Identifying DM-TL (Diagnosis Module - Tank Leakage) Diagram
G03405287
