M54 System Operation:
The pump draws air through its own air filter and delivers it to both exhaust manifolds through a non-return (shutoff valve). The non-return valve is used to:
- Control air injection into the exhaust manifold - A vacuum controlled valve will open the passageway for air to be injected once a vacuum is applied.
- Prevent possible backfires from traveling up the pipes and damaging the air pump when no vacuum is applied.

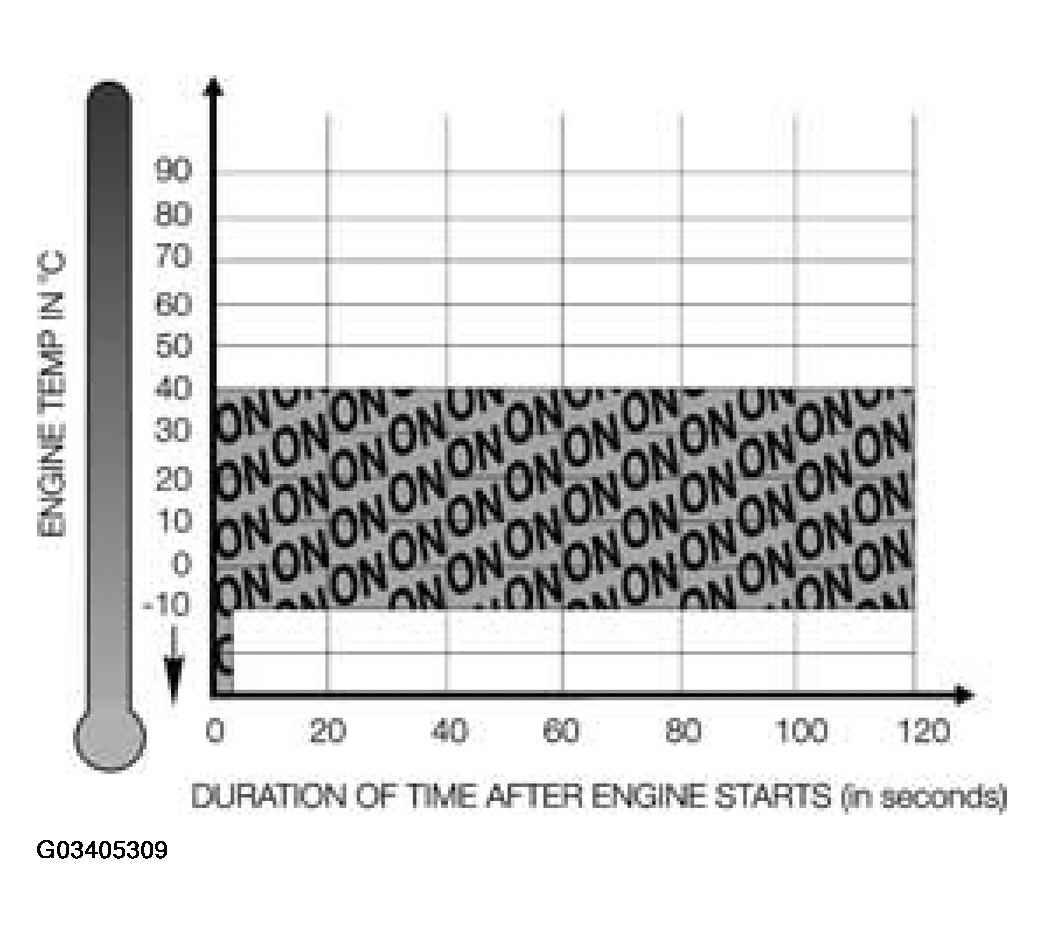

The control module activates the vacuum vent valve whenever the air pump is energized.
Once the vacuum vent valve is energized a vacuum is applied to the non-return valve which allows air to be injected into the exhaust manifold. A vacuum is retained in the lines, by the use of a check valve, in order to allow the non-return valve to be immediately activated on cold engine start up. When the vacuum/vent valve is not energized, the vacuum to the non-return valve is removed and is vented to atmosphere.
