Fuel Injection And Induction System Cleaning Tool Hose Replacement (04 28 07)
Publication date: 2007-12-20Reference number: 04 28 07
FUEL INJECTION AND INDUCTION SYSTEM CLEANING TOOL HOSE REPLACEMENT
TECHNICAL SERVICE BULLETIN
| BMW: | : E46 (3 Series) vehicles equipped with M54 or M56 engines; E46 (M3) vehicles equipped with S54 engine; E53 (X5) vehicles equipped with M54 engine; E53 (X5) vehicles equipped with N62 engine; E83 (X3) vehicles equipped with M54, N52 or N52K engines; E85 (Z4) vehicles equipped with M54, N52 or N52K engines; E85 (M Roadster and M Coupe) with S54 engine; E60 and E61 (5 Series) vehicles equipped with M54, N52 or N52K engines; E60 (5 Series) vehicles equipped with N62 or N62TU engines; E63 and E64 (6 Series) vehicles equipped with N62 or N62TU engines; E65 and E66 (7 Series) vehicles equipped with N62 or N62TU engines; E70 (X5) vehicles equipped with N52K engine; E70 (X5) vehicles equipped with N62TU engine; E90, E91 and E92 (3 Series) vehicles equipped with N51, N52 and N52K engines |
| GROUP: | : 04 - Tools and Equipment |
SUBJECT
Fuel Injection and Induction System Cleaning Tool Hose Replacement
SITUATION
SPX Corporation, the manufacturer of the Fuel Injection and Induction System Cleaning Tool, will be replacing the pressure hose. In the coming weeks, a replacement steel braided pressure hose with installation instructions will be mailed to your center, marked for the attention of the BMW Service Manager. Install the new pressure hose immediately upon receipt and discard the old red-colored pressure hose.

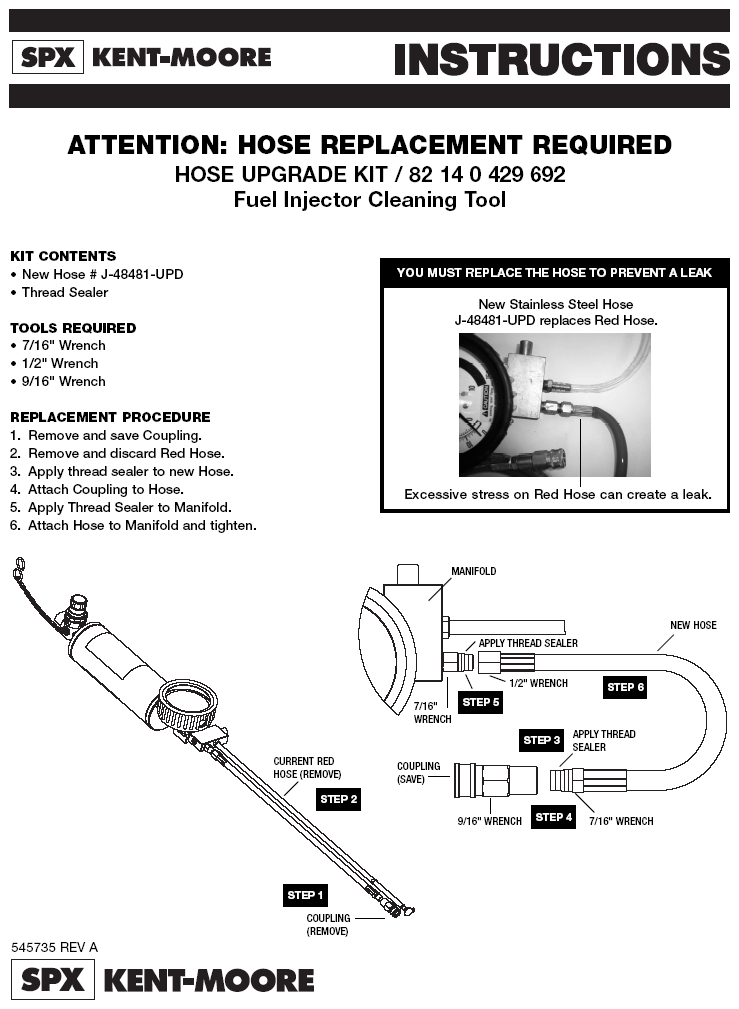

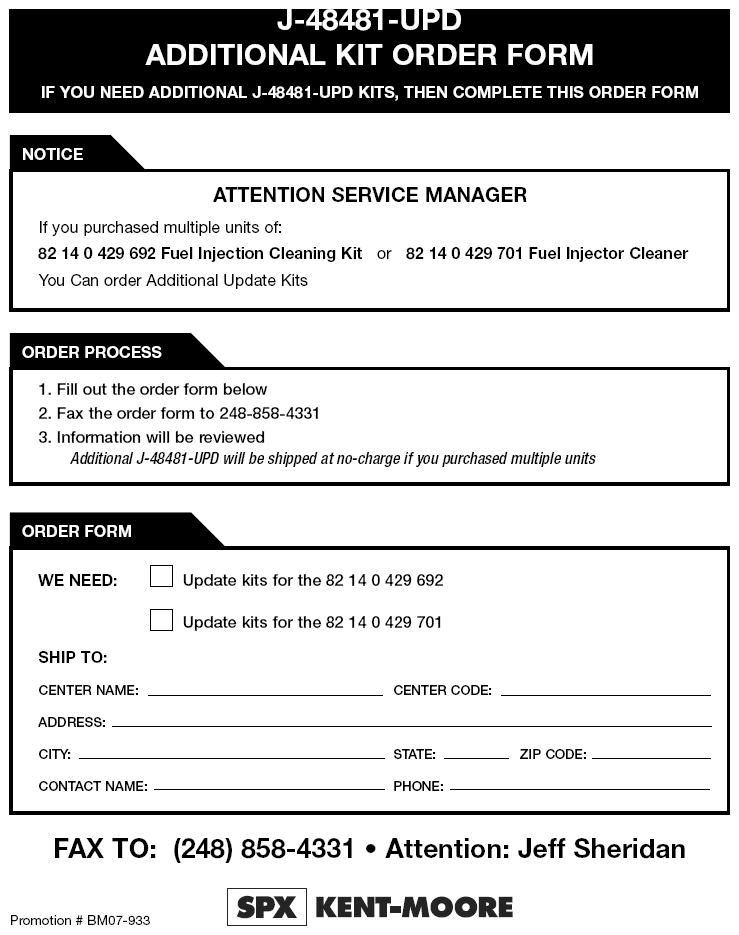

Attached to this Service Information Bulletin are copies of the installation instructions. Only one replacement hose will be shipped to each center. If your center has more than one Fuel Injection and Induction System Cleaning Tool, then you must use the attached form to order additional pressure hoses.
TOOL WARRANTY INFORMATION
The use of non-approved materials voids the warranty of the Fuel Injector and Induction System Cleaner Applicator Kit PN 82 14 0 429 692 and its contents. All of these tools are returned for inspection. If materials causing damage to these tools have been identified, then the tool will be returned to your center and a replacement credit will not be applied. When the tools described above are returned for warranty reimbursement, the tool must be accompanied by contact information and a reason for return in the shipping carton. Using a non-approved material can lead to deterioration of the tool, resulting in incorrect operation and a possible safety concern.
The Fuel Injector and Induction System Cleaner Applicator is constructed with materials that are compatible with gasoline and the Fuel Injector and Induction System Cleaner Concentrate PN 82 14 0 428 376 only .
