DTC Chart (X5) - 4 Of 5
DTC Chart (X5) - 4 Of 5

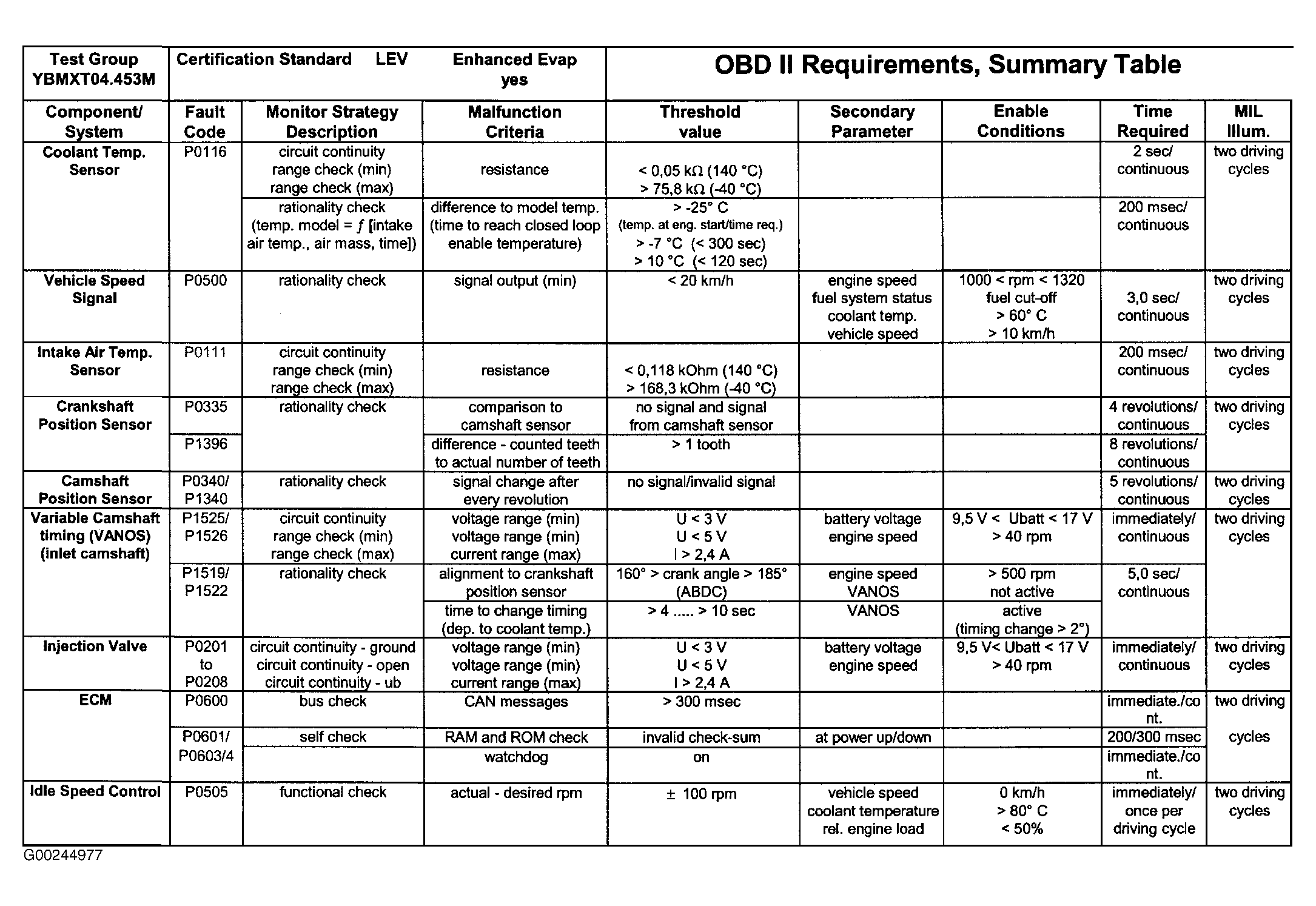

Fig 1: DTC Chart (X5) - 4 Of 5
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
