Home >> BMW >> 2000 >> 740iL >> Repair and Diagnosis >> Brakes >> Traction Control >> Dynamic Stability Control (DSC III) >> Removal Installation >> Control Module (ASC+T, DSC1, DSC2, DSC3) >> Production Up To 9/1998

Production Up To 9/1998

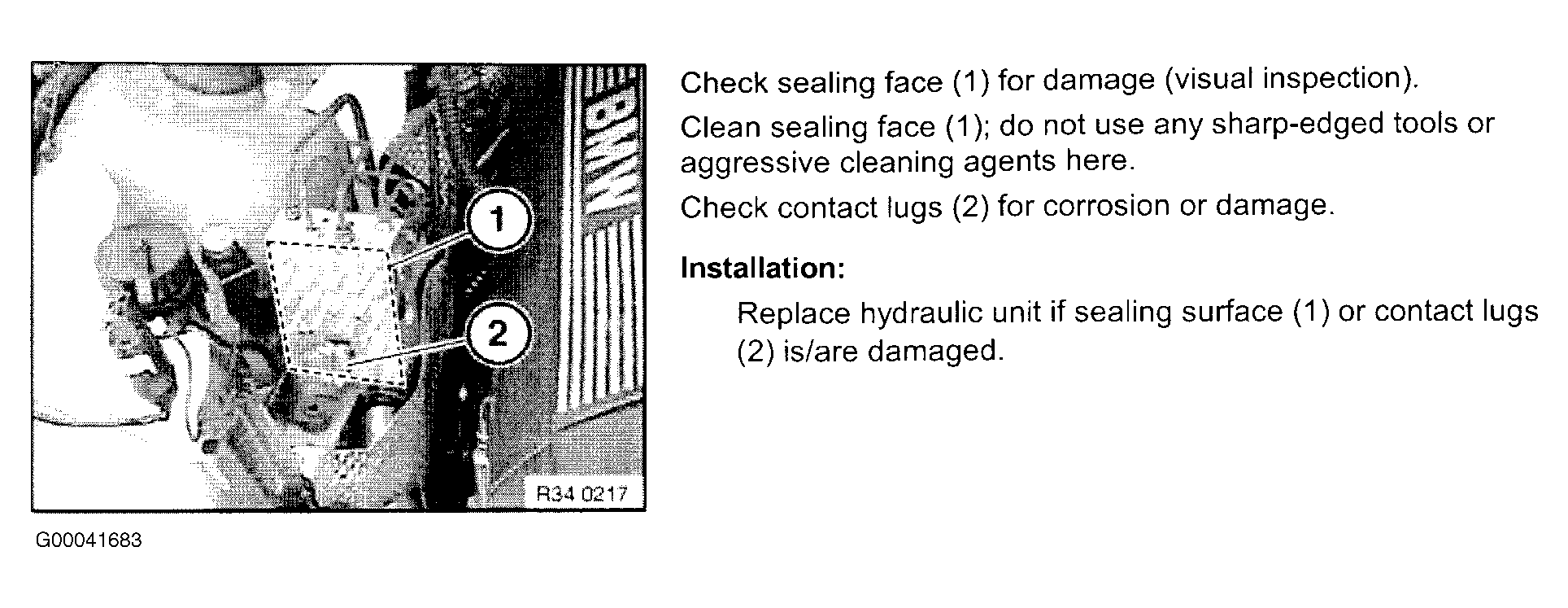

Fig 1: Removal & Installation Of Control Module (ASC+T, DSC1, DSC2, DSC3) (1 Of 2)
G00041683Courtesy of BMW OF NORTH AMERICA, INC.

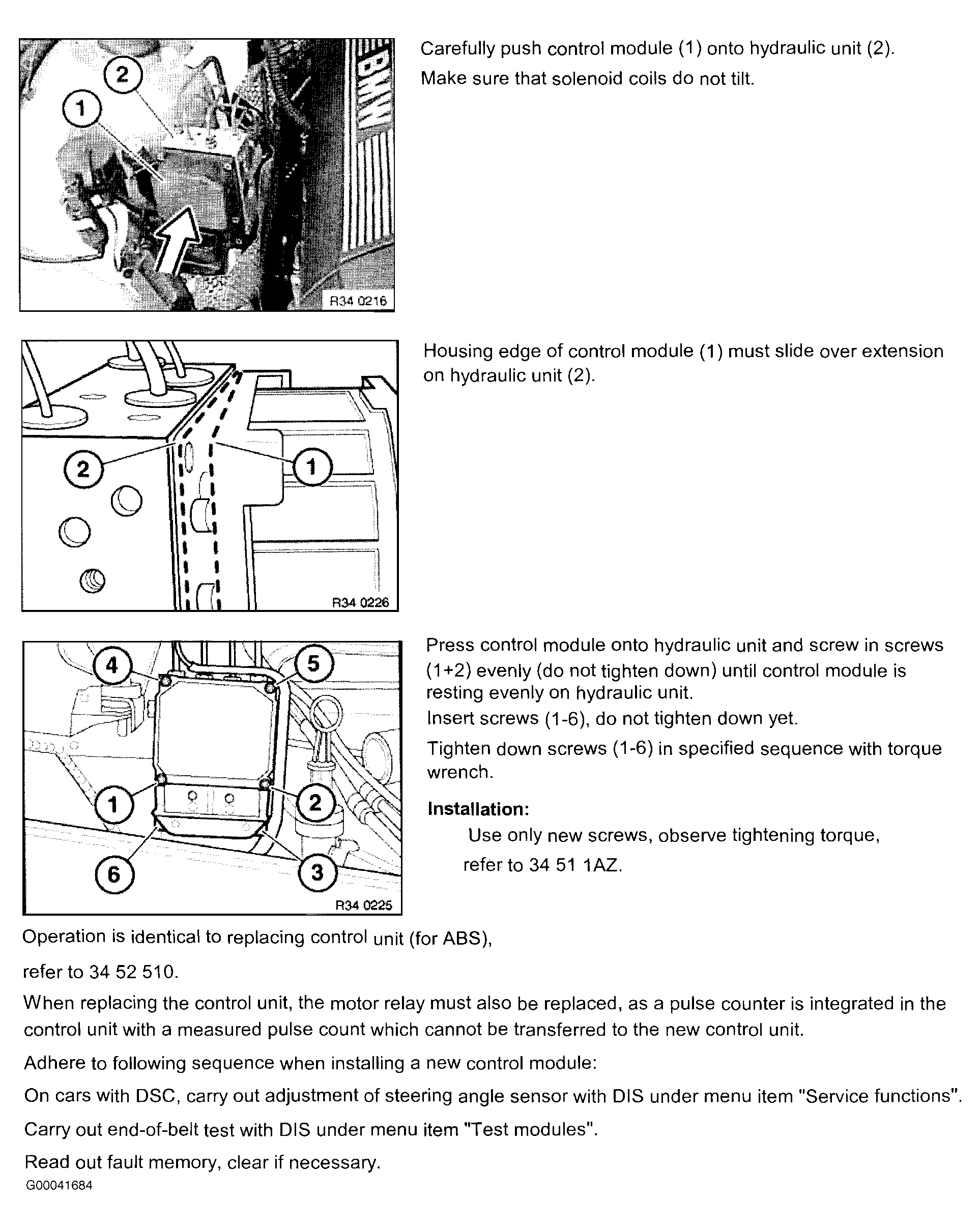

Fig 2: Removal & Installation Of Control Module (ASC+T, DSC1, DSC2, DSC3) (2 Of 2)
G00041684Courtesy of BMW OF NORTH AMERICA, INC.
