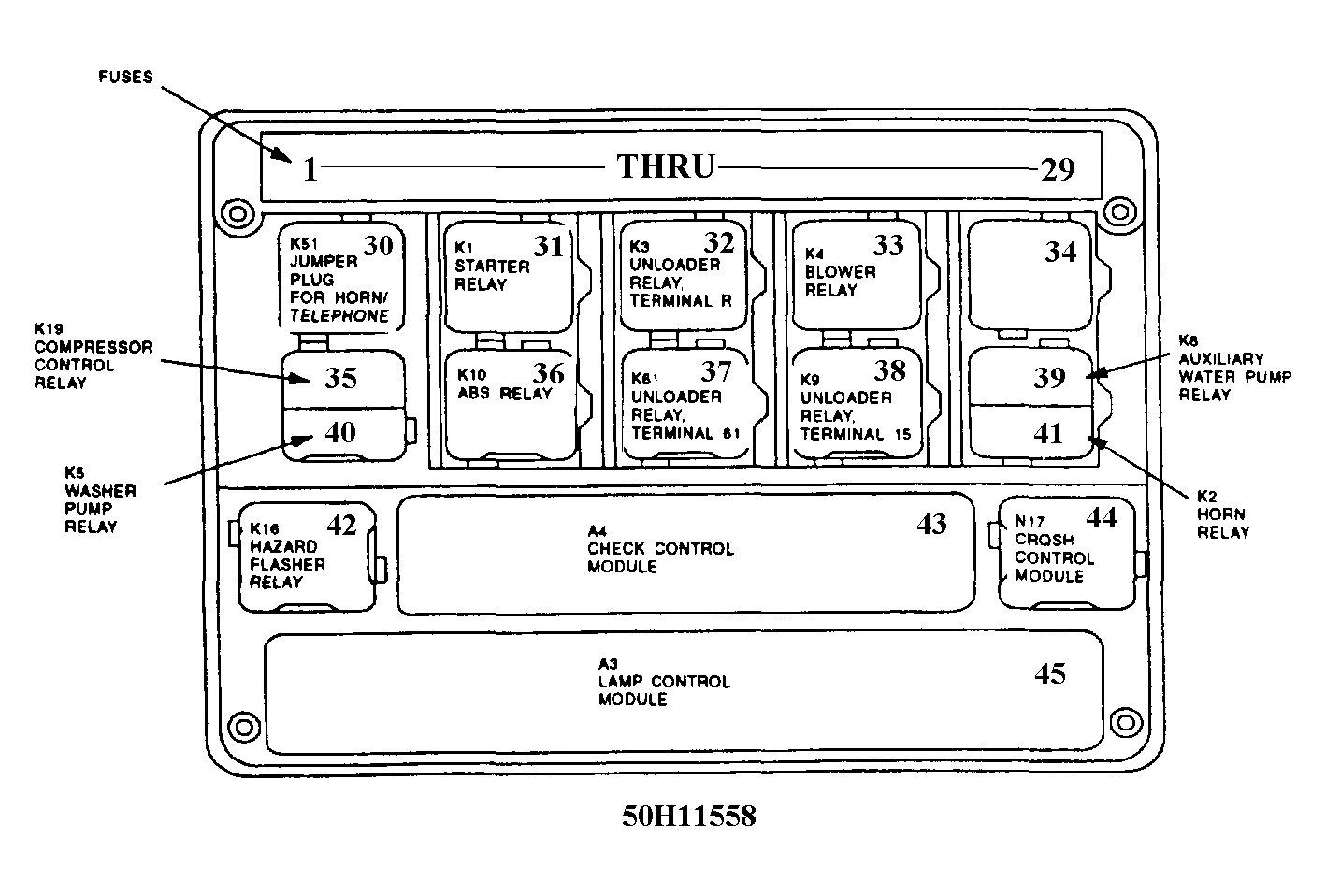

Front Fuse & Relay Panel Identification (1994): Notes
Courtesy of BMW OF NORTH AMERICA, INC. SYSTEMS OR COMPONENTS PROTECTED BY MULTIPLE FUSES (1994)
| System Or Component Protected |
Fuses Protecting System |
| Anti-Lock Brake System |
1, 17 |
| Anti-Theft System |
1, 17, 18, 21 |
| Auxiliary Fan |
9, 25, 29 |
| Brakelights |
1, 15 |
| Cellular Telephone (if equipped) |
|
| Central Body Electronics |
3, 4, 5, 15, 17, 24 |
| Charging System |
17, 28 |
| Climate Control System |
9, 19, 20, 27, 29 |
| Crash Control Module |
2, 6, 10, 11, 13, 14 |
| Cruise Control |
1, 17 |
| Door Lock Heating |
|
| E-Box Fan |
17, 28 |
| Electronic Transmission Control |
1, 12, 17 |
| Engine Control System |
2, 12, 17, 23 |
| Fuel Injection System |
17, 23 |
| Headlight Washer |
2, 3, 4, 17, 22 |
| Headlights & Foglights |
2, 3, 5, 7, 10, 11, 13, 14 |
| Instrument Cluster & Check Control |
1, 15, 17, 20, 29 |
| Interior Accessories |
5, 18, 21, 26 |
| Interior Lights |
18, 21 |
| Interior Start & Accessories |
5, 15, 18, 21, 26 |
| License & Trunk Lights |
5, 15, 21 |
| Light Monitor |
1, 2, 3, 4, 5, 7, 10, 11, 13, 14, 15 |
| Light Switch Circuit |
2, 3, 4, 5 |
| Multi-function Clock |
1, 20 |
| On Board Computer |
1, 17, 20 |
| Park, Tail & Underhood Lights |
4, 5, 15, 20 |
| Power Window Circuit |
|
| Radio & CD Player (if equipped) |
|
| Rear Window Wiper Washer |
|
| Remote Controlled Locking System |
17, 18 |
| Seat/Mirror Memory System |
12, 17 |
| Sun Roof |
|
| Traction Control System |
1, 12, 17 |
| Turn & Hazard Lights |
2, 3, 6, 13, 14 |
| Wiper/Washer Control |
1, 24 |
