Engine Compartment

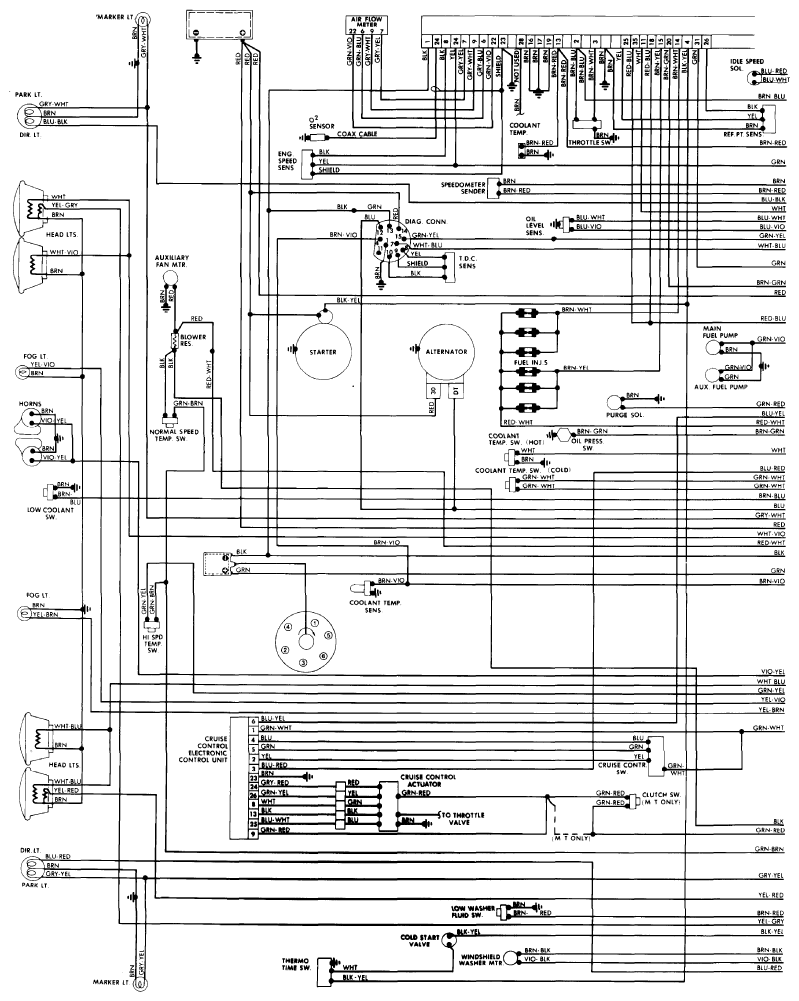

Fig 1: Wiring Diagram - 528e (1 of 4)

G09304370

Courtesy of BMW OF NORTH AMERICA, INC.
