Stator Windings Resistance

.2 ohms + 10% measured between the phase output terminals.

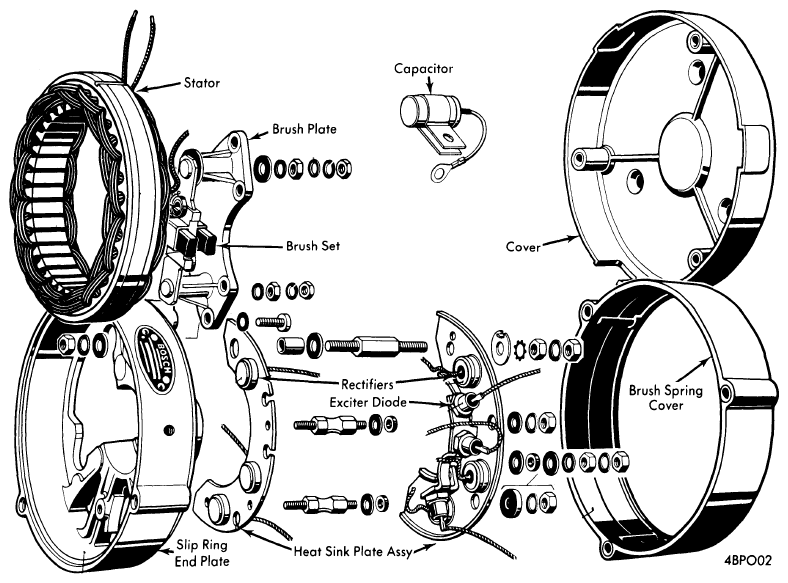

Fig 1: Bosch Alternator Frame Assembly (Typical)

G09318991

Courtesy of NOT AVAILABLE
