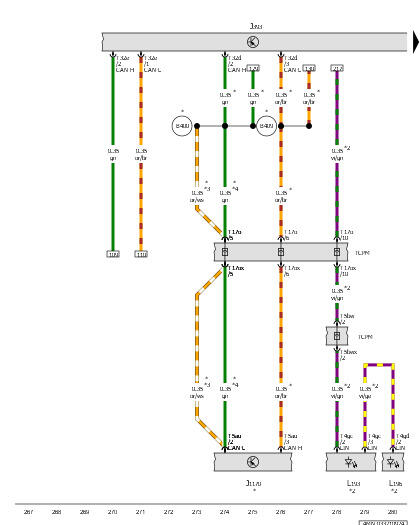

Comfort System Central Control Module, Near Field Communication Control Module 2, Front Center Console Ambient Lighting Bulb 1, Front Center Console Ambient Lighting Bulb 4

Courtesy of AUDI OF AMERICA, LLC

J393

Comfort System Central Control Module

J1170

Near Field Communication Control Module 2

L193

Front Center Console Ambient Lighting Bulb 1

L196

Front Center Console Ambient Lighting Bulb 4

T4gc

4-Pin Connector, Red

T4gd

4-Pin Connector, Black

T5au

5-Pin Connector, Black

T5bw

5-Pin Connector, Black

T5bwx

5-Pin Connector, Black

T17o

17-Pin Connector, Black

T17ox

17-Pin Connector, Black

T32d

32-Pin Connector, Naturally Cloudy, Black

T32e

32-Pin Connector, Blue

TCPM

Coupling Point on Instrument Panel, Center

B400

Comfort System CAN Bus, High Connection 4 (in Main Wiring Harness)

B409

Comfort System CAN Bus, Low Connection 4 (in Main Wiring Harness)

*

Optional Equipment

*2

For Vehicles with Ambient Lighting

*3

Omitted as a Running Change

*4

Running Change
