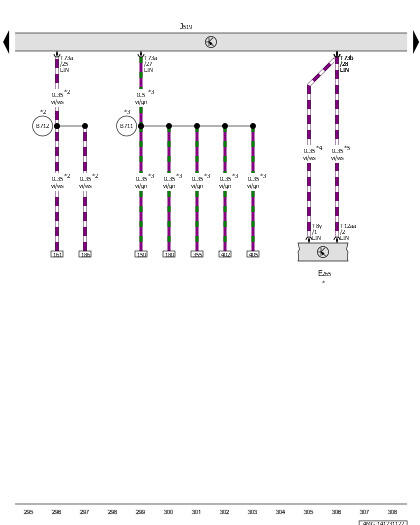

Rear A/C Display Control Head, Vehicle Electrical System Control Module

Courtesy of AUDI OF AMERICA, LLC

E265

Rear A/C Display Control Head

J519

Vehicle Electrical System Control Module

T8y

8-Pin Connector, Black

T12aa

12-Pin Connector, Black

T73a

73-Pin Connector, Black, Black

T73b

73-Pin Connector, Black, Naturally Cloudy

B711

LIN Bus Connection 6 (in Main Wiring Harness)

B712

LIN Bus Connection 7 (in Main Wiring Harness)

*

Refer to Applicable A/C System Wiring Diagram

*2

For Vehicles with Seat Ventilation

*3

For Vehicles with Ambient Lighting

*4

Not with Climatronic with 4-Zone Temperature Control

*5

For Climatronic with 4-Zone Temperature Control
