NOX Sensor 3 Control Module -J1183- / -GX50-, FOR ENGINE CODES DMGA, DMKC: Notes

Component Location

In center tunnel by exhaust tract.

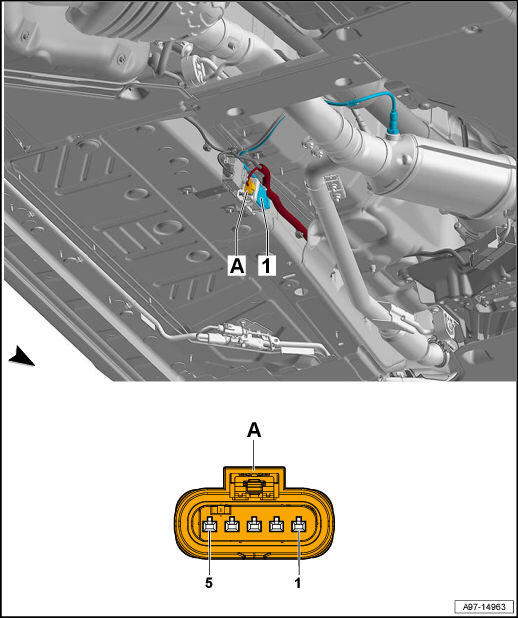

Fig 1: NOX Sensor 3 Control Module -J1183- / -GX50- Component Location And Connector End View (DMGA, DMKC)
GWWA97-14963Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  NOX Sensor 3 Control Module -J1183- / -GX50-
  2. A -  5-Pin Connector -T5ey-, black
