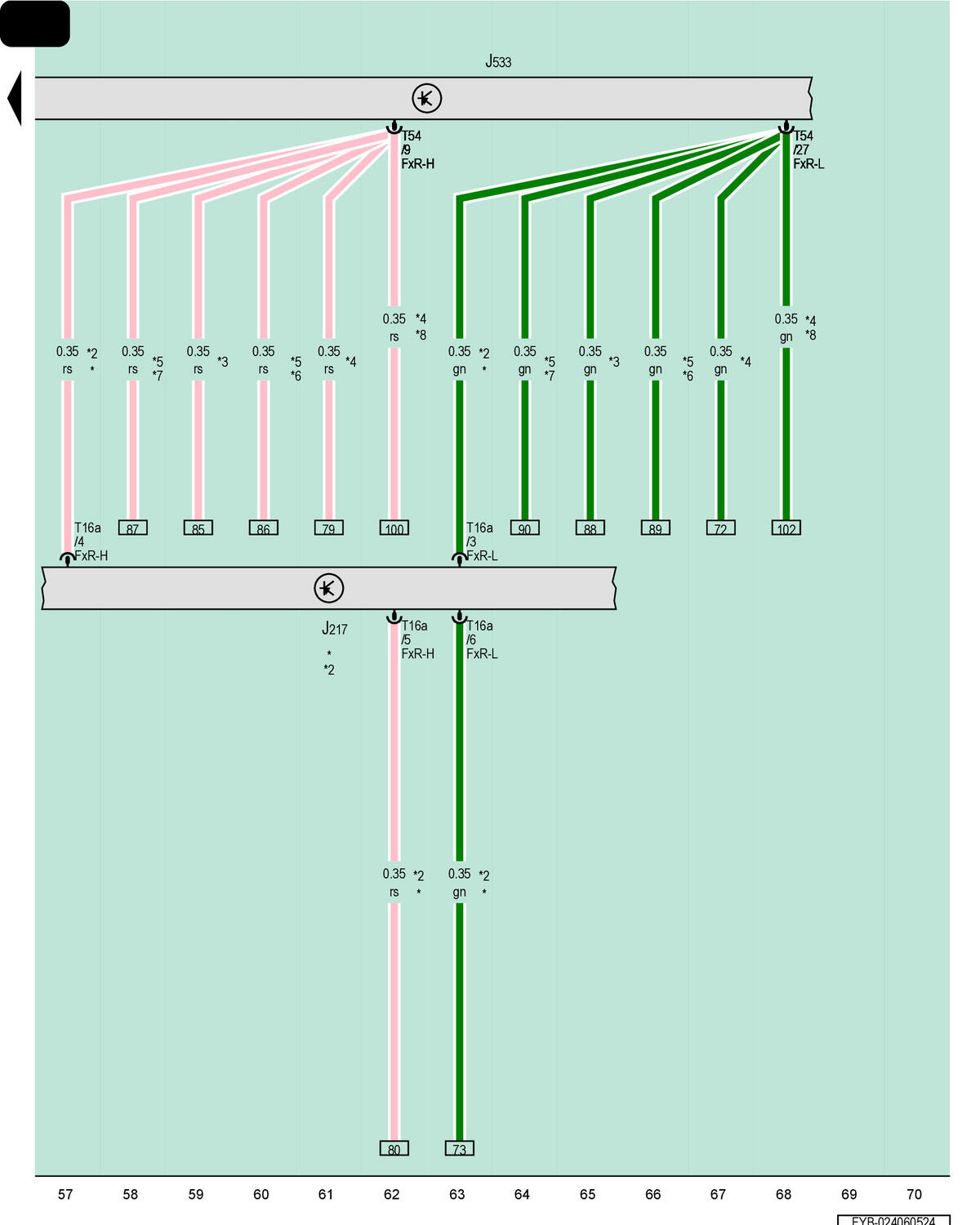

Transmission Control Module, Data Bus On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

J217

Transmission Control Module

J533

Data Bus on Board Diagnostic Interface

T16a

16-Pin Connector, Black

T54

54-Pin Connector, Black

*

For Vehicles Without All-Wheel Drive

*2

For Vehicles with Automatic Transmission

*3

For Vehicles with Automatic Transmission (DSG)

*4

For Vehicles with a Manual Transmission

*5

Data Bus Wire (Flexray Bus)

*6

For Vehicles with Hybrid Drive

*7

For Vehicles with 48 V Hybrid System

*8

For AWD Vehicles
