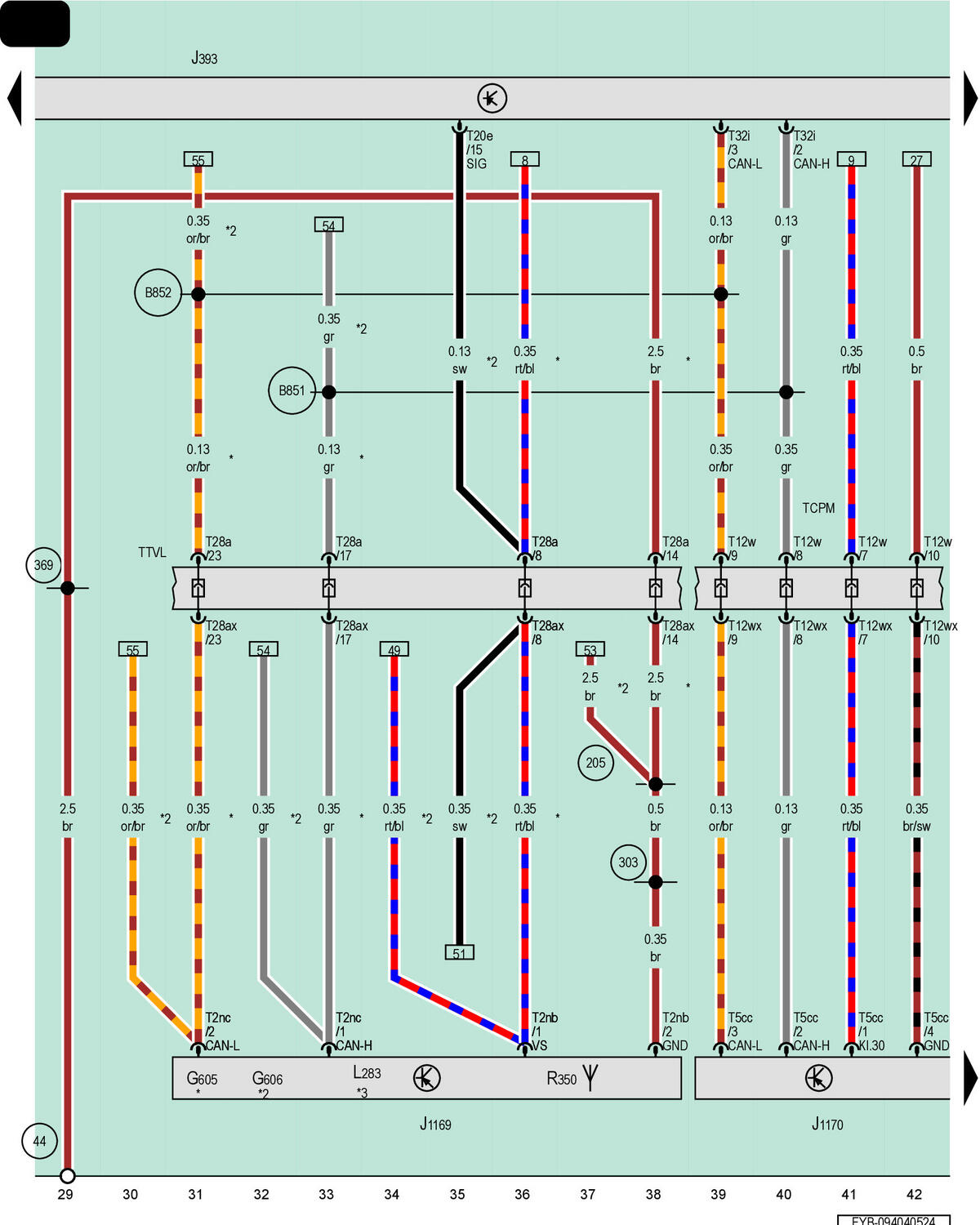

Comfort System Central Control Module, Near Field Communication Control Module, Near Field Communication Control Module 2
G605
Left Front Exterior Door Handle Touch Sensor
G606
Right Front Exterior Door Handle Touch Sensor
J393
Comfort System Central Control Module
J1169
Near Field Communication Control Module
J1170
Near Field Communication Control Module 2
L283
Driver Side Exterior Door Handle Illumination Lamp
R350
Near Field Communication Antenna
T2nb
2-Pin Connector, Dark Brown
T2nc
2-Pin Connector, Black
T5cc
5-Pin Connector, Black
T12w
12-Pin Connector, Black
T12wx
12-Pin Connector, Black
T20e
20-Pin Connector, Black
T28a
28-Pin Connector, Black
T28ax
28-Pin Connector, Black
T32i
32-Pin Connector, Naturally Cloudy
TCPM
Coupling Point on Instrument Panel, Center
TTVL
Left Front Door Coupling Point
44
Ground Connection on A-Pillar, Lower Left
205
Ground Connection (in Driver Door Wiring Harness)
303
Ground Connection 3 (in Driver Door Wiring Harness)
369
Ground Connection 4 (in Main Wiring Harness)
B851
Connection (CAN Bus, Comfort System Central Control Module, High)
B852
Connection (CAN Bus, Comfort System Central Control Module, Low)
*
For LHD Vehicles
*2
For RHD Vehicles
*3
For Vehicles with Auxiliary Lamps
