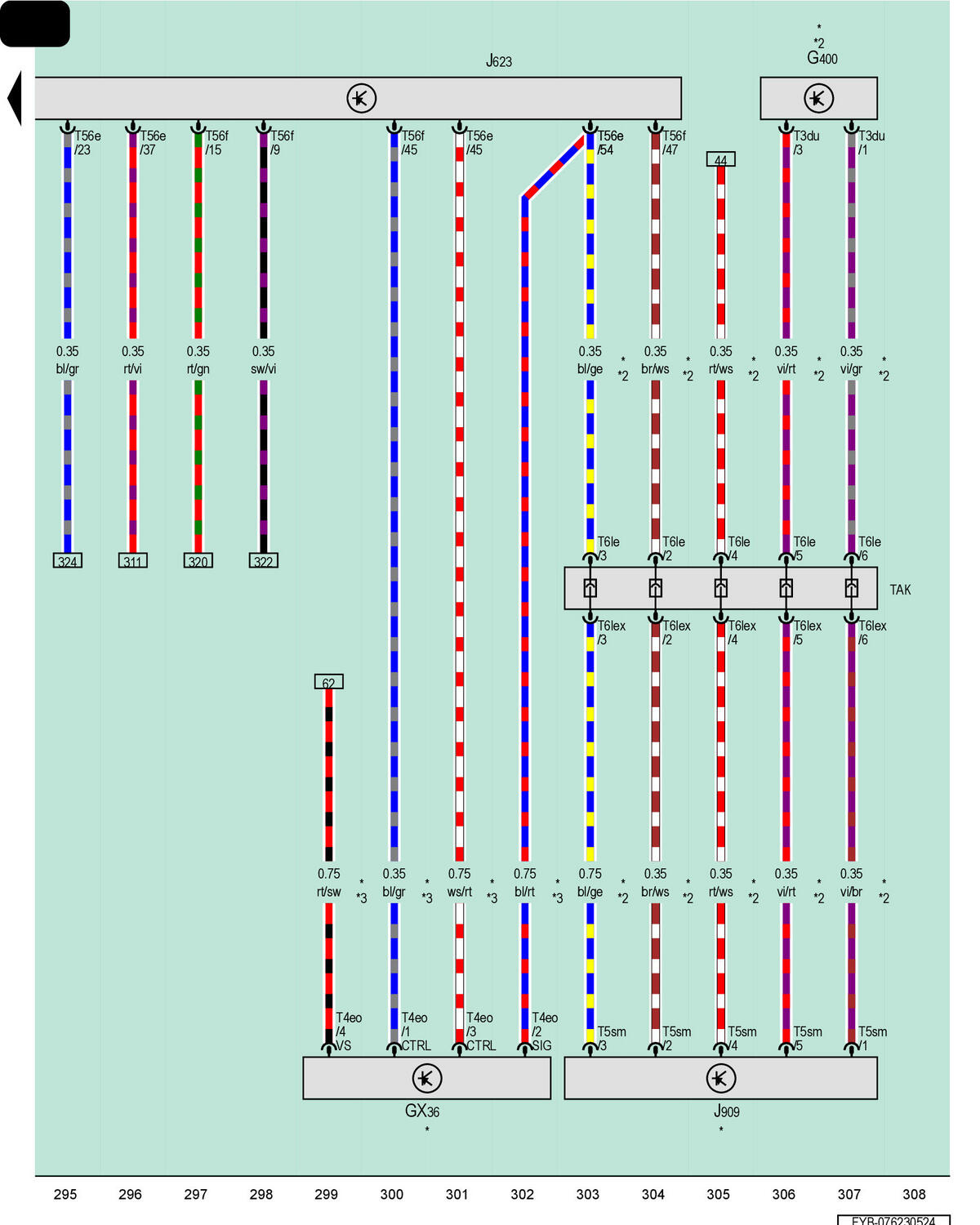

Fuel Tank Leak Detection Module, Fuel Tank Pressure Sensor, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module

Courtesy of AUDI OF AMERICA, LLC

GX36

Fuel Tank Leak Detection Module

G400

Fuel Tank Pressure Sensor

J623

Engine/Motor Control Module, In the Engine/Motor Compartment, Left Front

J909

Fuel Tank Leak Detection Control Module

T3du

3-Pin Connector, Black

T4eo

4-Pin Connector, Black

T5sm

5-Pin Connector, Black

T6le

6-Pin Connector, Green

T6lex

6-Pin Connector, Green

T56e

56-Pin Connector, Black, Green

T56f

56-Pin Connector, Black

TAK

Fuel Tank Coupling Point

*

For Vehicles with US Equipment

*2

Through September 2018

*3

From September 2018
