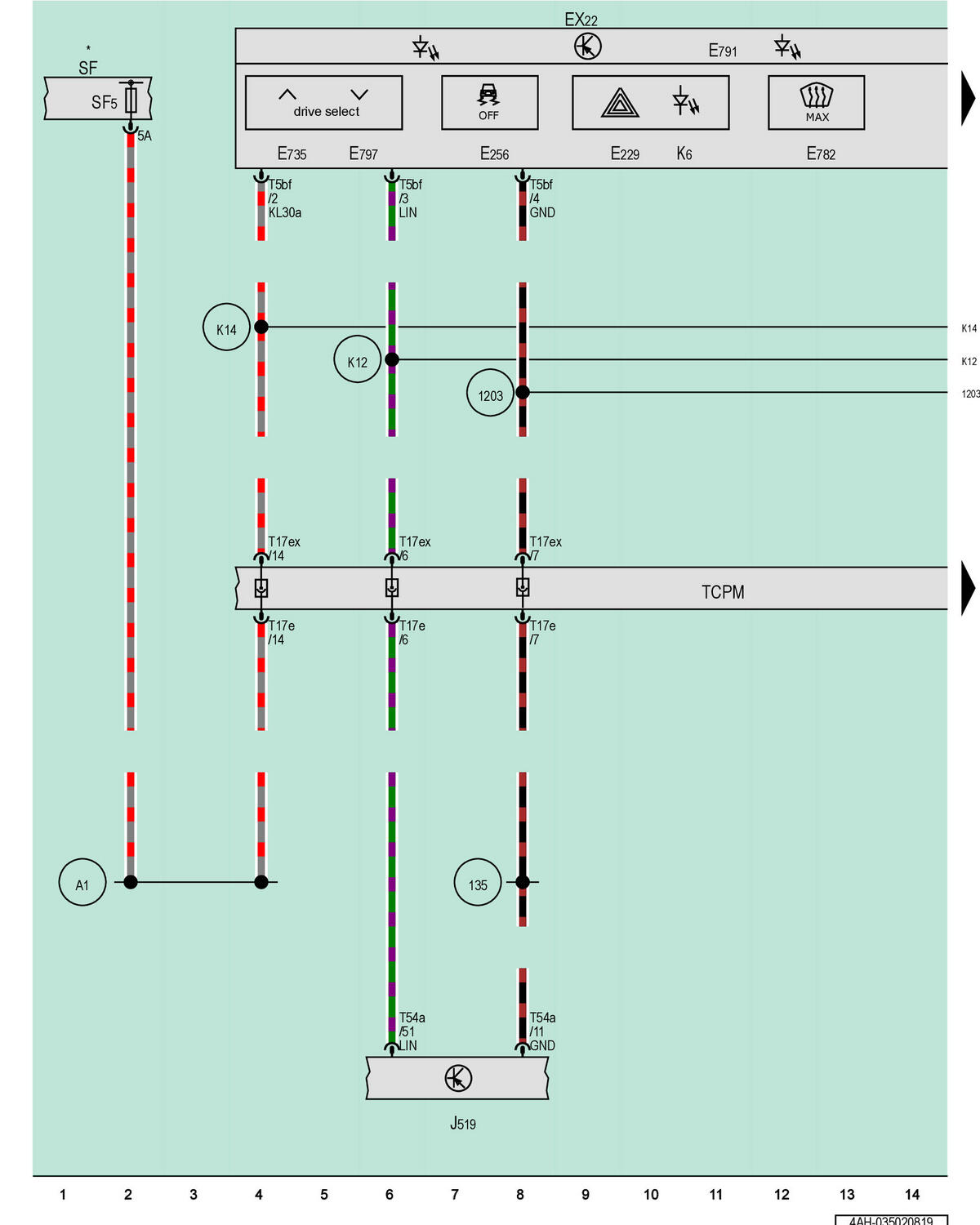

Switch Module In Instrument Panel, Center, Control Unit 1 For Driving And Convenience Functions, Vehicle Electrical System Control Module
EX22
Switch Module in Instrument Panel, Center
E229
Emergency Flasher Button
E256
ASR/ESP Button
E735
Driving Profile Selection Button
E782
Defrost Button
E791
Control Unit 1 for Driving and Convenience Functions
E797
Driving Profile Selection Button 2
J519
Vehicle Electrical System Control Module
K6
Emergency Flasher Indicator Lamp
SF
Fuse Panel F
SF5
Fuse 5 (On Fuse Panel F)
T5bf
5-Pin Connector, Brown
T17e
17-Pin Connector, Black
T17ex
17-Pin Connector, Black
T54a
54-Pin Connector, Black
TCPM
Coupling Point on Instrument Panel, Center
135
Ground Connection 2 (in Instrument Panel Wiring Harness)
1203
Ground Connection (in Center Console Wiring Harness)
A1
Positive Connection 30a (in Instrument Panel Wiring Harness)
K12
LIN Bus Connection (in Center Console Wiring Harness)
K14
Connection (30) (in Center Console Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
