Special Purpose Vehicle Control Module -J608- (CABRIOLET): Notes

Component Location

In left luggage compartment, behind luggage compartment side panel trim.

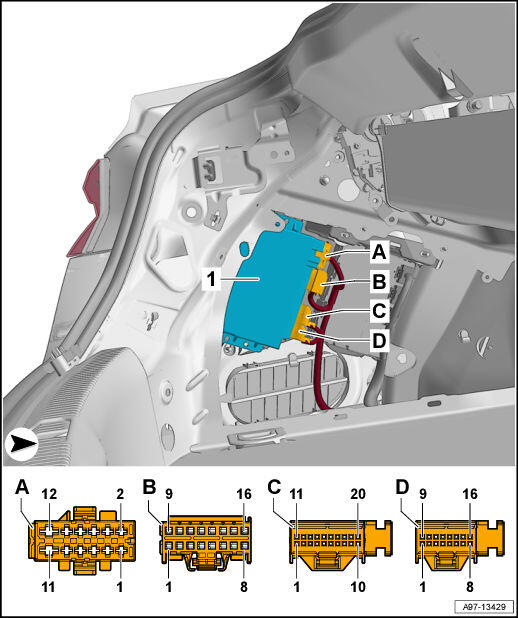

Fig 1: Special Purpose Vehicle Control Module -J608- Component Location And Connector End View (Cabriolet)

Courtesy of AUDI OF AMERICA, LLC

1. Special Purpose Vehicle Control Module -J608-

1. 12-Pin Connector -T12o-, black
2. 16-Pin Connector -T16d-, black
3. 20-Pin Connector -T20k-, black
4. 16-Pin Connector -T16e-, black
