Amplifier for Telephone -R86- (CABRIOLET): Notes

Component Location

In right luggage compartment, behind side panel trim.

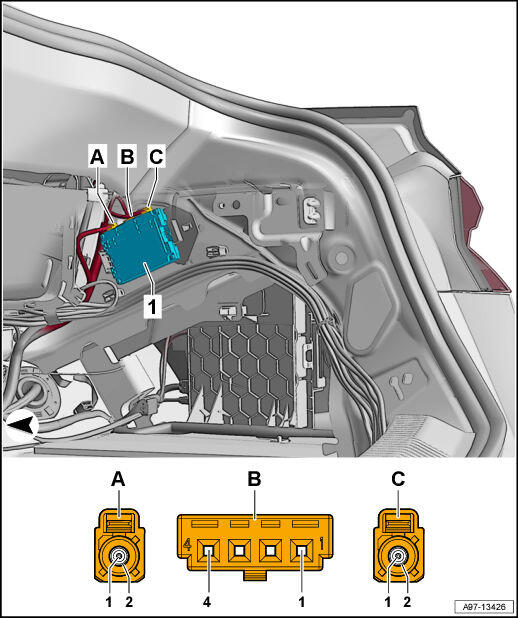

Fig 1: Amplifier For Telephone -R86- Component Location And Connector End View (Cabriolet)

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Amplifier for Telephone -R86-
• A -  2-Pin Connector -T2hw-, purple, yellow, naturally cloudy
  • through September 2019
• A -  2-Pin Connector -T2nkb-, purple
  • from October 2019
  • only with (GB1)
• A -  2-Pin Connector -T2nkc-, naturally cloudy
  • from October 2019
  • only with (GB2)
• A -  2-Pin Connector -T2nkd-, yellow
  • from October 2019
  • only with (GB3)
• B -  4-Pin Connector -T4br-, black
• C -  2-Pin Connector -T2hv-, black
