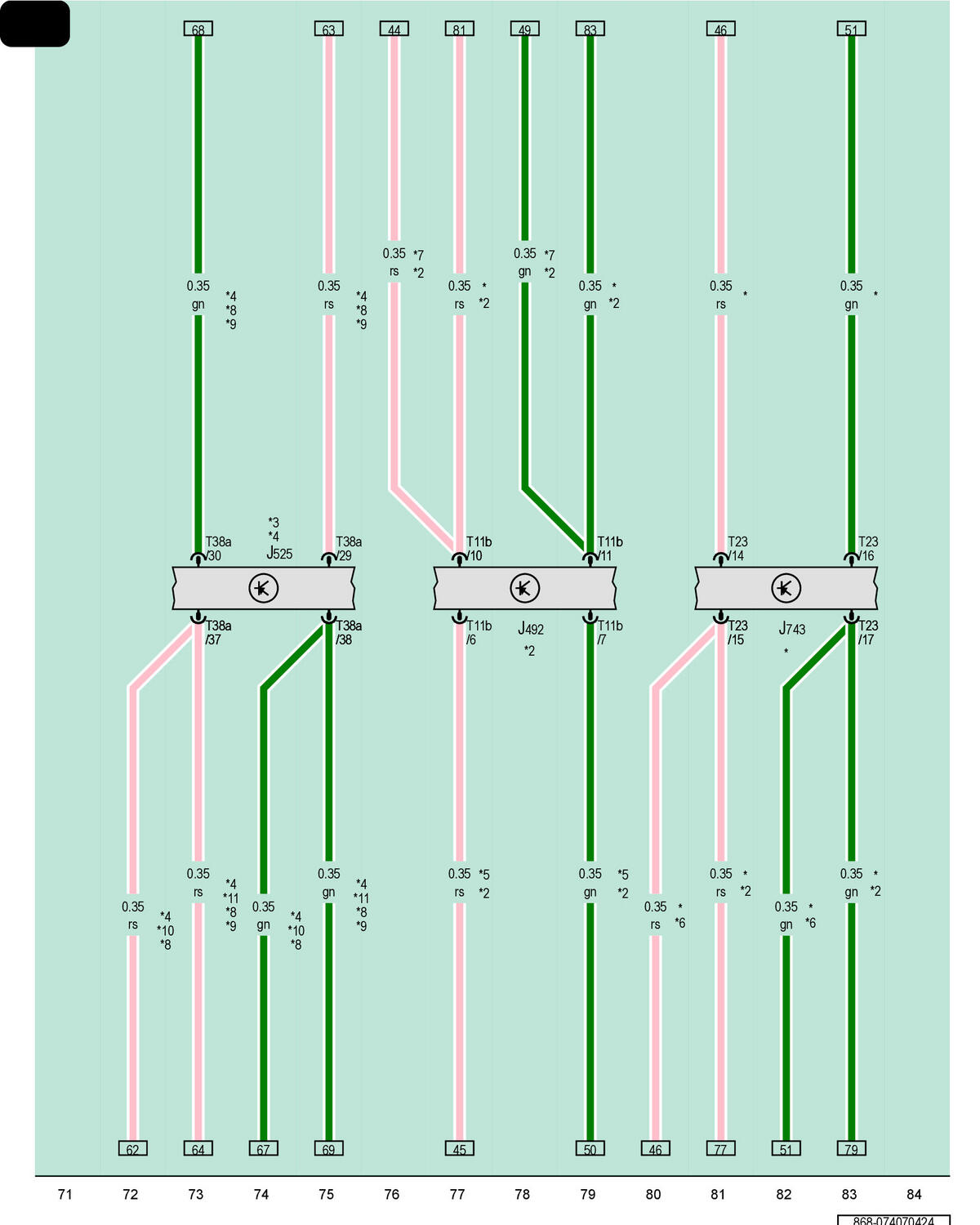

All-Wheel Drive Control Module, Digital Sound System Control Module, Dual-Clutch Transmission MECHATRONIC

Courtesy of AUDI OF AMERICA, LLC

J492

All-Wheel Drive Control Module

J525

Digital Sound System Control Module

J743

Dual-Clutch Transmission Mechatronic

T11b

11-Pin Connector, Black

T23

23-Pin Connector, Black

T38a

38-Pin Connector, Black

*

For Vehicles with Automatic Transmission (DSG)

*2

For AWD Vehicles

*3

Refer to Applicable Sound System Wiring Diagram

*4

For Vehicles with Bang & Olufsen Sound System

*5

For Vehicles with Automatic Transmission

*6

For Vehicles Without All-Wheel Drive

*7

For Vehicles with a Manual Transmission

*8

Audio Bus Data Bus Wire

*9

From July 2019

*10

From December 2019

*11

Through November 2019
