Pneumatic Edge Milling Unit Vas882 005, Application: Basics

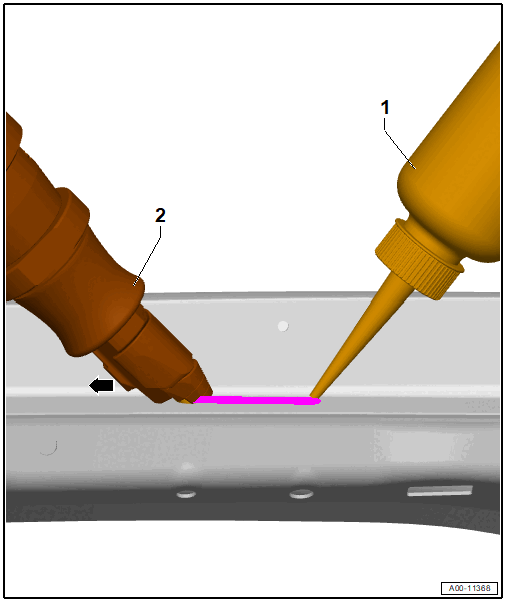

NOTE:

Always use a cutting oil VAS882 001/5 -1- during milling procedures on steel panels. This ensures that there are no flying sparks,

The service life of the milling tool will be prolonged.

Courtesy of AUDI OF AMERICA, LLC

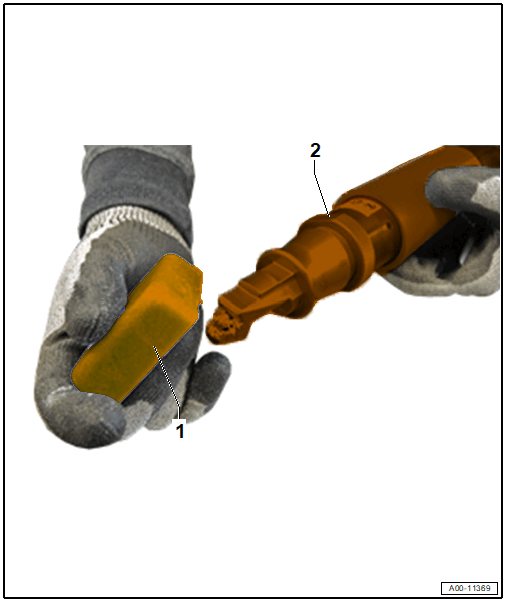

NOTE:

Always use the drill wax -1- during milling procedures on aluminum panels.

This prevents the milling tool from clogging. The service life of the milling tool will be prolonged.

Courtesy of AUDI OF AMERICA, LLC

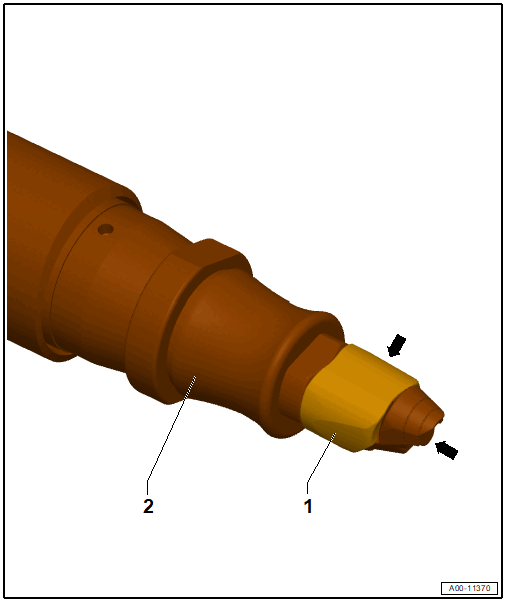

NOTE:

During front side procedures using the milling tool -2-, the protective cover -1- must be used.

Courtesy of AUDI OF AMERICA, LLC
