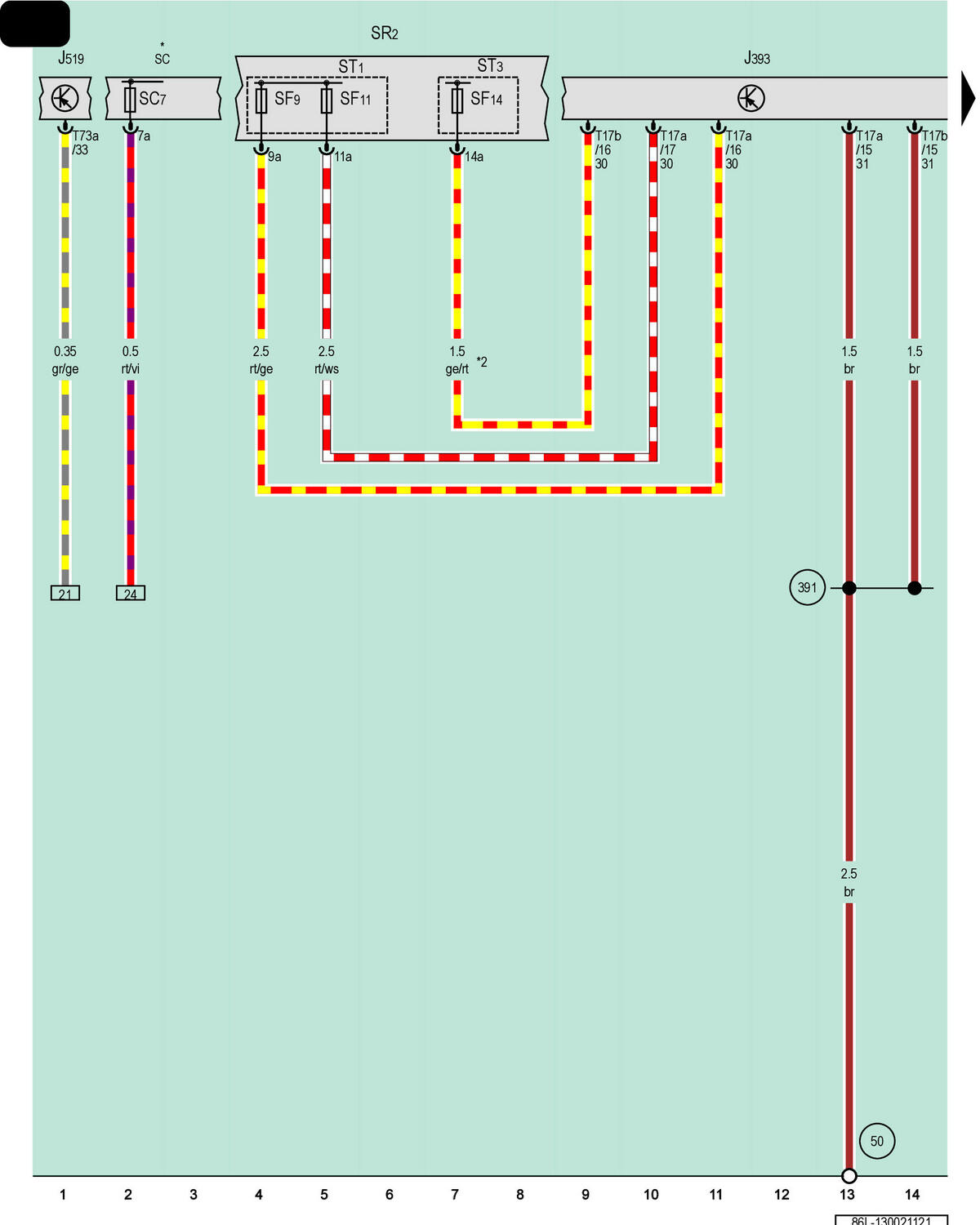

Comfort System Central Control Module, Vehicle Electrical System Control Module, Fuse Panel C

Courtesy of AUDI OF AMERICA, LLC

J393

Comfort System Central Control Module

J519

Vehicle Electrical System Control Module

SC

Fuse Panel C

ST1

Fuse Panel 1, Black

SR2

Relay and Fuse Panel 2

ST3

Fuse Panel 3, Brown

SC7

Fuse 7 (On Fuse Panel C)

SF9

Fuse 9 (On Fuse Panel F)

SF11

Fuse 11 (On Fuse Panel F)

SF14

Fuse 14 (On Fuse Panel F)

T17a

17-Pin Connector, Brown

T17b

17-Pin Connector, Black

T73a

73-Pin Connector, Black

50

Ground Connection in Luggage Compartment, Left

391

Ground Connection 26 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

Diameter Depends on Equipment
