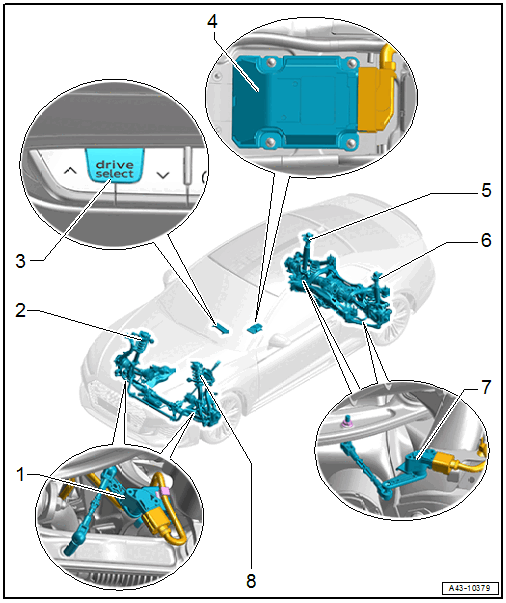

Component Location Overview - Electronic Damping
WARNING: This page is about a different car, the 2025 Audi S5 Sportback, 2025 Audi RS 5 Sportback, and 2025 Audi A5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Front Level Control System Sensor
- Left Front Level Control System Sensor -G78-
- Right Front Level Control System Sensor -G289-
- Overview. Refer to OVERVIEW - FRONT LEVEL CONTROL SYSTEM SENSOR .
- Shock Absorber with Right Front Damping Adjustment Valve -N337-
- Overview. Refer to OVERVIEW - SUSPENSION STRUT COIL SPRING .
- Driving Profile Selection Button
- With Driving Profile Selection Button -E735- / Driving Profile Selection Button 2 -E797-
- In Switch Module in Instrument Panel, Center -EX22-
- The components cannot be replaced separately if faulty.
- Drivetrain Control Module -J775-
- Installation location: on the center tunnel
- Removing and Installing. Refer to Drivetrain Control Module -J775-, REMOVING AND INSTALLING .
- Shock Absorber with Right Rear Damping Adjustment Valve -N339-
- Overview. Refer to OVERVIEW - SHOCK ABSORBER .
- Shock Absorber with Left Rear Damping Adjustment Valve -N338-
- Overview. Refer to OVERVIEW - SHOCK ABSORBER .
- Rear Level Control System Sensor
- Left Rear Level Control System Sensor -G76-
- Right Rear Level Control System Sensor -G77-
- Overview. Refer to OVERVIEW - REAR LEVEL CONTROL SYSTEM SENSOR .
- Shock Absorber with Left Front Damping Adjustment Valve -N336-
- Overview. Refer to OVERVIEW - SUSPENSION STRUT COIL SPRING .
-- Tighten the nuts -arrows- to 8 Nm.
