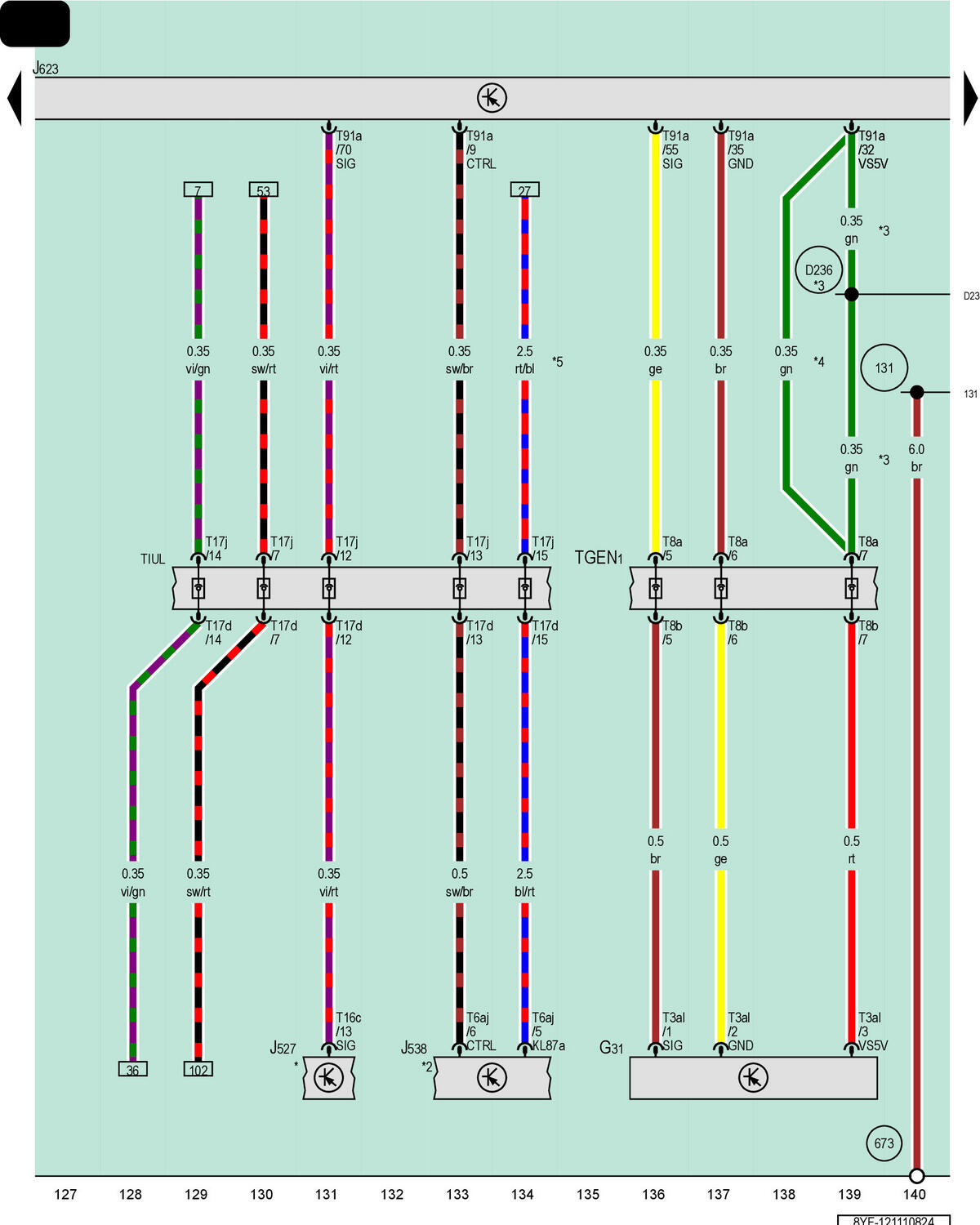

Charge Air Pressure Sensor, Steering Column Electronics Control Module, Fuel Pump Control Module, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

G31

Charge Air Pressure Sensor

J527

Steering Column Electronics Control Module

J538

Fuel Pump Control Module

J623

Engine/Motor Control Module

T3al

3-Pin Connector, Black

T6aj

6-Pin Connector, Black

T8a

8-Pin Connector, Black

T8b

8-Pin Connector, Black

T16c

16-Pin Connector, Black

T17d

17-Pin Connector, Red

T17j

17-Pin Connector, Red

T91a

91-Pin Connector, Black

TGEN1

Generator Coupling Point 1

TIUL

Coupling Point in Interior, Bottom Left

131

Ground Connection 2 (in Engine/Motor Compartment Wiring Harness)

673

Ground Connection 3 on Left Front Longitudinal Member

D236

Connection 5 (5V) (in Engine Pre-Wiring Harness)

*

Refer to Applicable Steering Column Electronics Wiring Diagram

*2

Refer to Applicable Fuel System Wiring Diagram

*3

For LEV3/Tier 3 70 Emissions Standard

*4

For Emissions Standard Euro 6 AP

*5

Different Wire Color Possible
