Control Modules In Rear Part Of Vehicle, Overview (Coupe Or SPORTBACK)

NOTE:

Overview of Control Modules (Cabriolet) OVERVIEW OF CONTROL MODULES IN REAR PART OF VEHICLE (CABRIOLET)

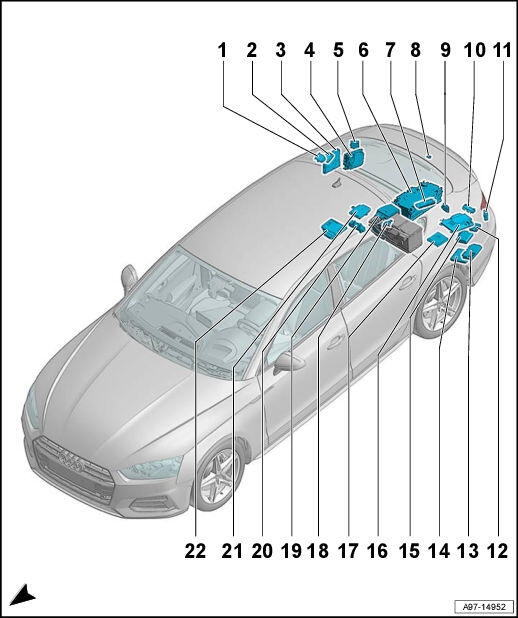

Fig 1: Identifying Control Modules In Rear Part Of Vehicle (Coupe Or Sportback)

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Amplifier for Telephone -R86-
  • Overview (Cabriolet)  . Amplifier for Telephone -R86-
  • Component Location Amplifier for Telephone -R86- (COUPE OR SPORTBACK)
  • Pin Arrangements Pin Arrangements Amplifier for Telephone -R86- (Coupe or Sportback)
• 2 -  Auxiliary Heater RF Receiver -R64-
  • Component Location Auxiliary Heater RF Receiver -R64- COMPONENT LOCATION AND CONNECTOR END VIEW
  • Pin Arrangements through June 2018 Pin Arrangements Auxiliary Heater RF Receiver -R64-, through June 2018
  • Pin Arrangements from June 2018 Pin Arrangements Auxiliary Heater RF Receiver -R64-, from June 2018
• 3 -  TV Tuner -R78-
  • Overview (Cabriolet)  . TV Tuner -R78-
  • Component Location TV Tuner -R78- COMPONENT LOCATION AND CONNECTOR END VIEW
  • Pin Arrangements Pin Arrangements TV Tuner -R78-
• 4 -  Voltage Converter, 48 V/12 V -A7-
  • Component Location Voltage Converter, 48 V/12 V -A7- COMPONENT LOCATION AND CONNECTOR END VIEW
  • Pin Arrangements Pin Arrangements Voltage Converter, 48 V/12 V -A7-
• 5 -  Lane Change Assistance Control Module -J769-
  • Overview (Cabriolet)  . Lane Change Assistance Control Module -J769-
  • Component Location Lane Change Assistance Control Module -J769- COMPONENT LOCATION AND CONNECTOR END VIEW
  • Pin Arrangements Pin Arrangements Lane Change Assistance Control Module -J769-
• 6 -  Battery, 48 V -A6-
  • Component Location Battery, 48 V -A6- COMPONENT LOCATION AND CONNECTOR END VIEW
  • Pin Arrangements Pin Arrangements Battery, 48 V -A6-
• 7 -  Rear Lid Control Module -J605-
  • Component Location Rear Lid Control Module -J605- COMPONENT LOCATION AND CONNECTOR END VIEW
  • Pin Arrangements Pin Arrangements Rear Lid Control Module -J605-
• 8 -  Rear View Camera System Control Module -J772-
  • Overview (Cabriolet)  . Rear View Camera System Control Module -J772-
  • Component Location Rear View Camera System Control Module -J772- COMPONENT LOCATION AND CONNECTOR END VIEW
  • Pin Arrangements Pin Arrangements Rear View Camera System Control Module -J772-
• 9 -  Garage Door Opener Control Module -J530-
  • Overview (Cabriolet)  . Garage Door Opener Control Module -J530-
  • Component Location Garage Door Opener Control Module -J530- COMPONENT LOCATION AND CONNECTOR END VIEW
  • Pin Arrangements Pin Arrangements Garage Door Opener Control Module -J530-
• 10 -  Rear lid opener control module -J938-
  • Component Location, through September 2019 Rear lid opener control module -J938-, THROUGH SEPTEMBER 2019
  • Component Location, from October 2019 Rear lid opener control module -J938-, FROM OCTOBER 2019
  • Pin Arrangements, through September 2019 Pin Arrangements Rear lid opener control module -J938-, through September 2019
  • Pin Arrangements, from October 2019 Pin Arrangements Rear lid opener control module -J938-, from October 2019
• 11 -  Lane Change Assistance Control Module 2 -J770-
  • Overview (Cabriolet)  . Lane Change Assistance Control Module 2 -J770-
  • Component Location Lane Change Assistance Control Module 2 -J770- COMPONENT LOCATION AND CONNECTOR END VIEW
  • Pin Arrangements Pin Arrangements Lane Change Assistance Control Module 2 -J770-
• 12 -  Engine Sound Generator Control Module -J943-
  • Overview (Cabriolet)  . Engine Sound Generator Control Module -J943-
  • Component Location Engine Sound Generator Control Module -J943- COMPONENT LOCATION AND CONNECTOR END VIEW
  • Pin Arrangements Pin Arrangements Engine Sound Generator Control Module -J943-
• 13 -  Peripheral Camera Control Module -J928-
  • Overview (Cabriolet)  . Peripheral Camera Control Module -J928-
  • Component Location Peripheral Camera Control Module -J928- COMPONENT LOCATION AND CONNECTOR END VIEW
  • Pin Arrangements Pin Arrangements Peripheral Camera Control Module -J928-
• 14 -  Comfort System Central Control Module -J393-
  • Overview (Cabriolet)  . Comfort System Central Control Module -J393-
  • Component Location Comfort System Central Control Module -J393- COMPONENT LOCATION AND CONNECTOR END VIEW
  • Pin Arrangements Pin Arrangements Comfort System Central Control Module -J393-
• 15 -  Towing Recognition Control Module -J345-
  • Overview (Cabriolet)  . Towing Recognition Control Module -J345-
  • Component Location Towing Recognition Control Module -J345- COMPONENT LOCATION AND CONNECTOR END VIEW
  • Pin Arrangements Pin Arrangements Towing Recognition Control Module -J345-
• 16 -  Special Purpose Vehicle Control Module -J608-
  • Overview (Cabriolet)  . Special Purpose Vehicle Control Module -J608-
  • Component Location Special Purpose Vehicle Control Module -J608- (COUPE OR SPORTBACK)
  • Pin Arrangements Pin Arrangements Special Purpose Vehicle Control Module -J608- (Coupe or Sportback)
• 16 -  Digital Sound System Control Module -J525-
  • Overview (Cabriolet)  . Digital Sound System Control Module -J525-
  • Component Location Digital Sound System Control Module -J525- (COUPE OR SPORTBACK)
  • Pin Arrangements, through September 2019 Pin Arrangements Digital Sound System Control Module -J525- (Coupe or Sportback), through September 2019
  • Pin Arrangements, from October 2019 Pin Arrangements Digital Sound System Control Module -J525- (Coupe or Sportback), from October 2019
• 17 -  Control module for emergency call module and communication unit -J949-
  • Overview (Cabriolet)  . Control module for emergency call module and communication unit -J949-
  • Component Location, through September 2019 Control module for emergency call module and communication unit -J949- (COUPE OR SPORTBACK), THROUGH SEPTEMBER 2019
  • Component Location, from October 2019 Control module for emergency call module and communication unit -J949- (COUPE OR SPORTBACK), FROM OCTOBER 2019
  • Pin Arrangements, through September 2019 Pin Arrangements Control module for emergency call module and communication unit -J949-, through September 2019
  • Pin Arrangements, from October 2019 Pin Arrangements Control module for emergency call module and communication unit -J949-, from October 2019
• 18 -  Battery Monitoring Control Module -J367-
  • Overview (Cabriolet)  . Battery Monitoring Control Module -J367-
  • Component Location Battery Monitoring Control Module -J367- COMPONENT LOCATION AND CONNECTOR END VIEW
  • Pin Arrangements Pin Arrangements Battery Monitoring Control Module -J367-
• 19 -  Auxiliary Battery -A1-
  • Component Location Auxiliary Battery -A1- COMPONENT LOCATION AND CONNECTOR END VIEW
• 20 -  Tire Pressure Monitoring Control Module -J502-
  • Component Location Tire Pressure Monitoring Control Module -J502- COMPONENT LOCATION AND CONNECTOR END VIEW
  • Pin Arrangements Pin Arrangements Tire Pressure Monitoring Control Module -J502-
• 21 -  Differential lock control module -J187-
  • Overview (Cabriolet)  . Differential lock control module -J187-
  • Component Location Differential lock control module -J187- COMPONENT LOCATION AND CONNECTOR END VIEW
  • Pin Arrangements Pin Arrangements Differential lock control module -J187-
• 22 -  Reducing Agent Metering System Control Module -J880-
  • Overview (Cabriolet)  . Reducing Agent Metering System Control Module -J880-
  • Component Location Reducing Agent Metering System Control Module -J880- COMPONENT LOCATION AND CONNECTOR END VIEW
  • Pin Arrangements Pin Arrangements Reducing Agent Metering System Control Module -J880-
