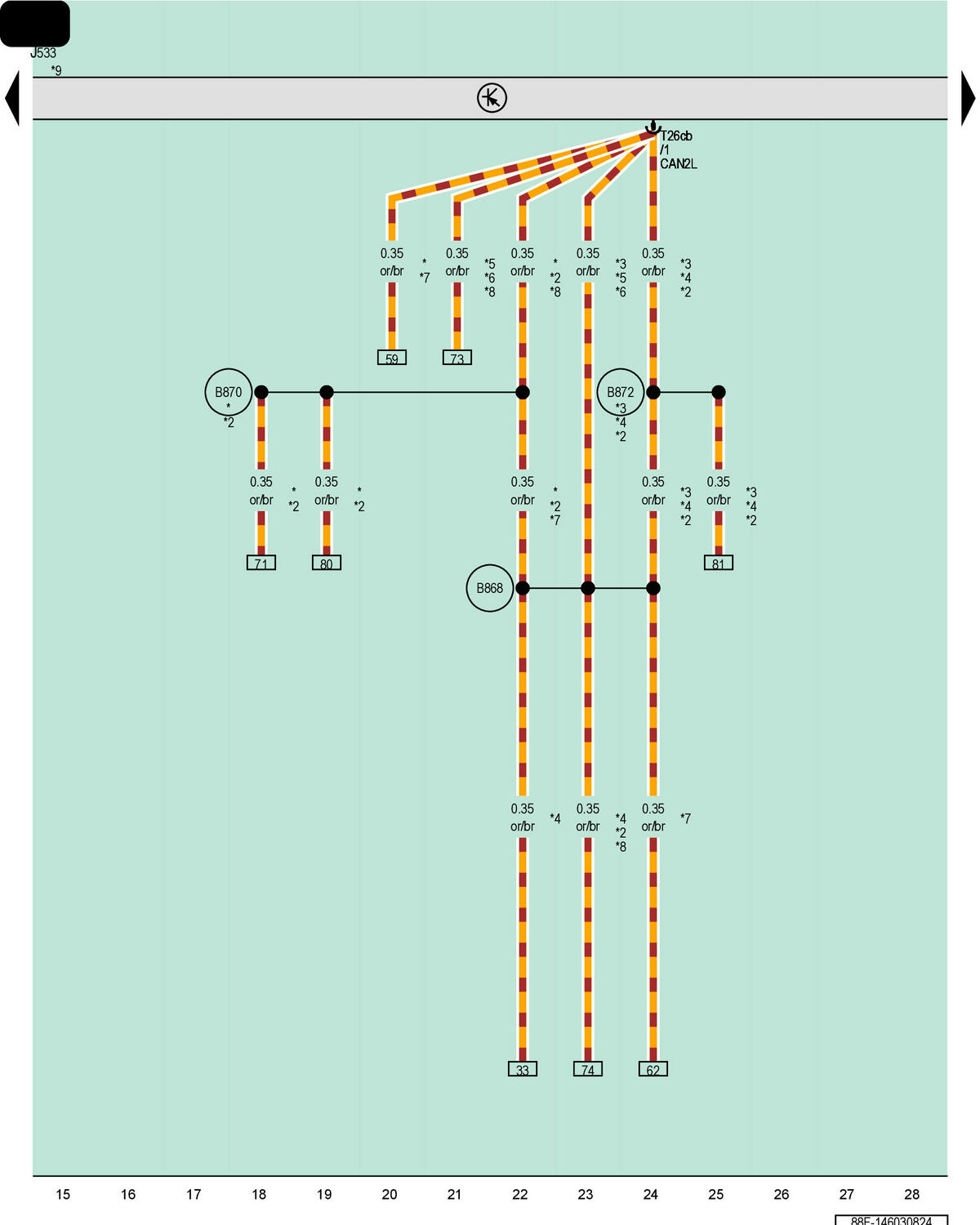

Data Bus On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

T26cb

26-Pin Connector, Black

B868

Driver Assistance Systems CAN Bus Low Connection 2 (in Main Wiring Harness)

B870

Driver Assistance Systems CAN Bus Low Connection 3 (in Main Wiring Harness)

B872

Driver Assistance Systems CAN Bus Low Connection 4 (in Main Wiring Harness)

*

For RHD Vehicles

*2

For Vehicles with Peripheral Camera

*3

For LHD Vehicles

*4

For Vehicles with Rearview Camera System

*5

For Vehicles Without Rearview Camera System

*6

For Vehicles without Peripheral Camera

*7

For Vehicles with Lane Assistance

*8

For Vehicles Without Lane Assistance

*9

Refer to Applicable Wiring Diagram for Data Bus Networking
