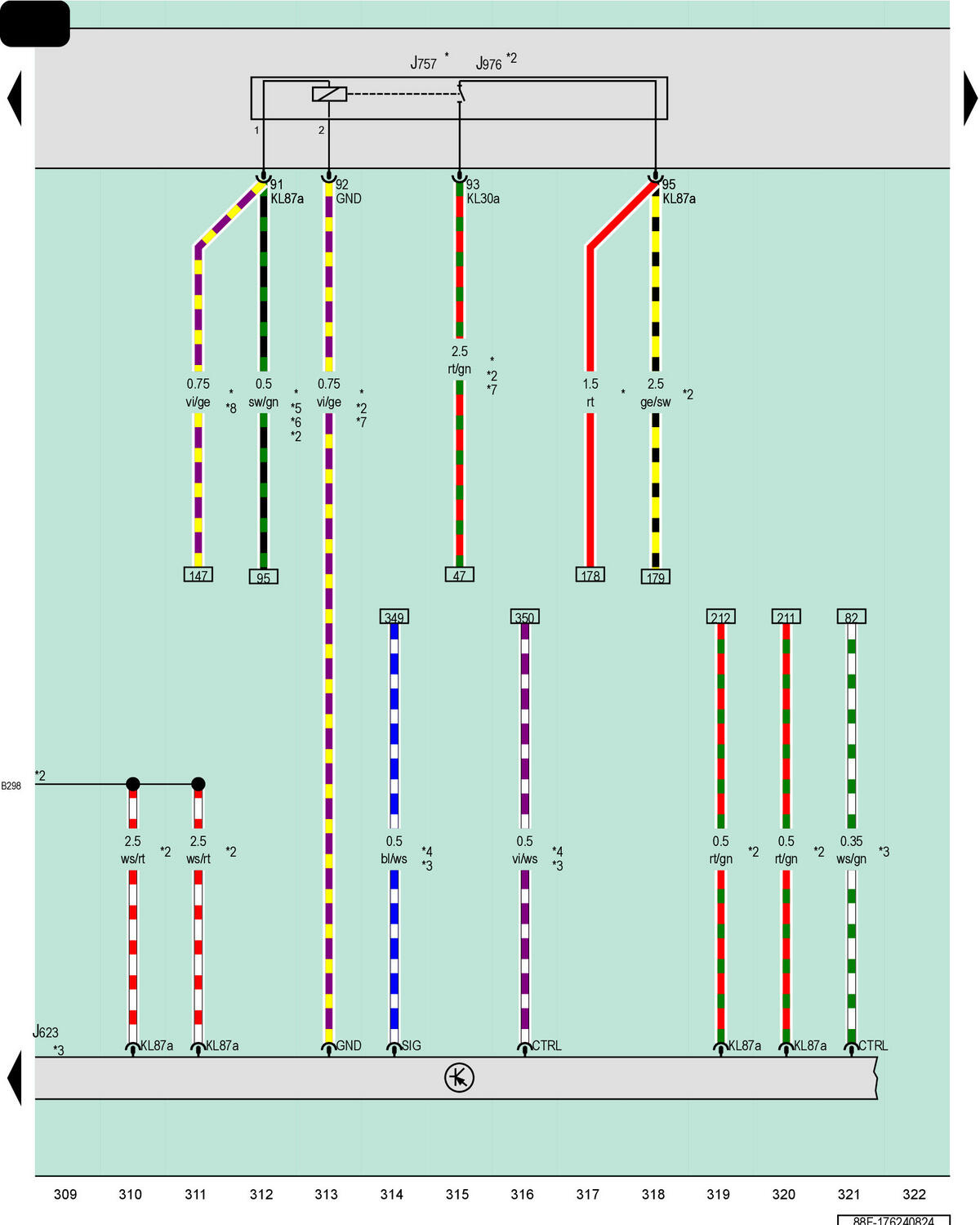

Engine/Motor Control Module, Fuse Panel B

Courtesy of AUDI OF AMERICA, LLC

J623

Engine/Motor Control Module

J757

Engine Component Power Supply Relay

J976

Engine Component Power Supply Relay 2

SB

Fuse Panel B

B298

Positive Connection 2 (30) (in Main Wiring Harness)

*

For Vehicles with 2.0L Gasoline Engine

*2

For Vehicles with 2.5L Gasoline Engine

*3

Refer to Applicable Engine Wiring Diagram

*4

For Vehicles with Diesel Engine

*5

For Emissions Standard Euro 6 AP

*6

For Emissions Standard J18 Japan

*7

Diameter Depends on Equipment

*8

For Emissions Standard Euro 6 ZD/E/F
