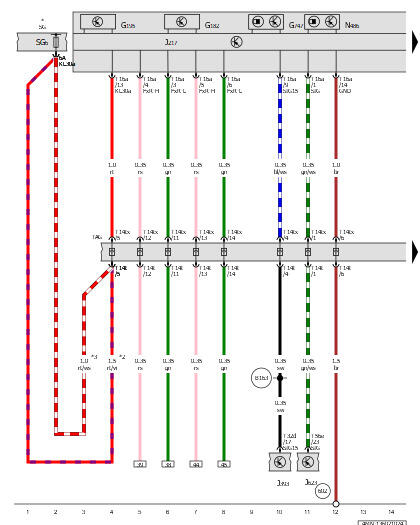

Parking Lock Sensor, Transmission Control Module, Comfort System Central Control Module, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

G182

Transmission Input Speed Sensor

G195

Transmission Output Speed Sensor

G747

Parking Lock Sensor

J217

Transmission Control Module

J393

Comfort System Central Control Module

J623

Engine/Motor Control Module

N486

Parking Lock Solenoid

Fuse Panel G

SG6

Fuse 6 on Fuse Panel G

T14t

14-Pin Connector, Black

T14tx

14-Pin Connector, Black

T16a

16-Pin Connector, Black

T32d

32-Pin Connector, Naturally Cloudy, Black

T56e

56-Pin Connector, Black, Green

TAG

Automatic Transmission Coupling Point

602

Ground Connection in Left Front Footwell

B163

Positive Connection 1 (15) (in Interior Wiring Harness)

Refer to Applicable Wiring Diagram for Fuse Positions

Omitted as a Running Change

Running Change
