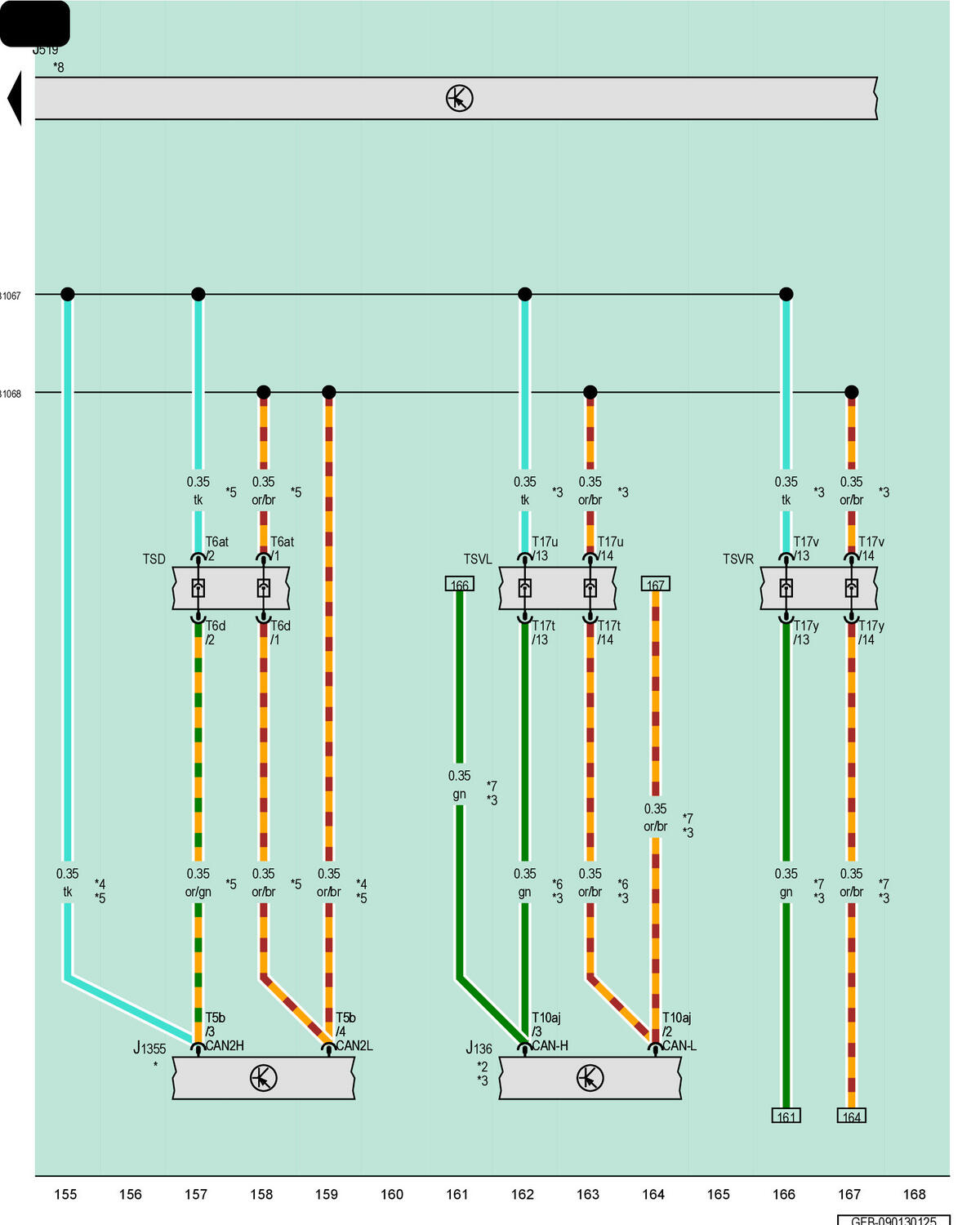

Memory Seat/Steering Column Adjustment Control Module, Vehicle Electrical System Control Module, Roof System Control Module

Courtesy of AUDI OF AMERICA, LLC

J136

Memory Seat/Steering Column Adjustment Control Module

J519

Vehicle Electrical System Control Module

J1355

Roof System Control Module

T5b

5-Pin Connector, Black

T6at

6-Pin Connector, Black

T6d

6-Pin Connector, Black

T10aj

10-Pin Connector, Black

T17t

17-Pin Connector, Red

T17u

17-Pin Connector, Red

T17v

17-Pin Connector, Red

T17y

17-Pin Connector, Red

TSD

Sunroof Coupling Point

TSVL

Left Front Seat Coupling Station

TSVR

Right Front Seat Coupling Station

B1067

CAN Bus 2, J519 High Connection 1 (in Main Wiring Harness)

B1068

CAN Bus 2, J519 Low Connection 1 (in Main Wiring Harness)

*

Refer to the Applicable Sunroof Wiring Diagram

*2

Refer to Applicable Wiring Diagram for the Driver Seat

*3

For Vehicles with Memory Seats

*4

Sportback

*5

Depending on Equipment

*6

For LHD Vehicles

*7

For RHD Vehicles

*8

Refer to Applicable Convenience System Wiring Diagram
